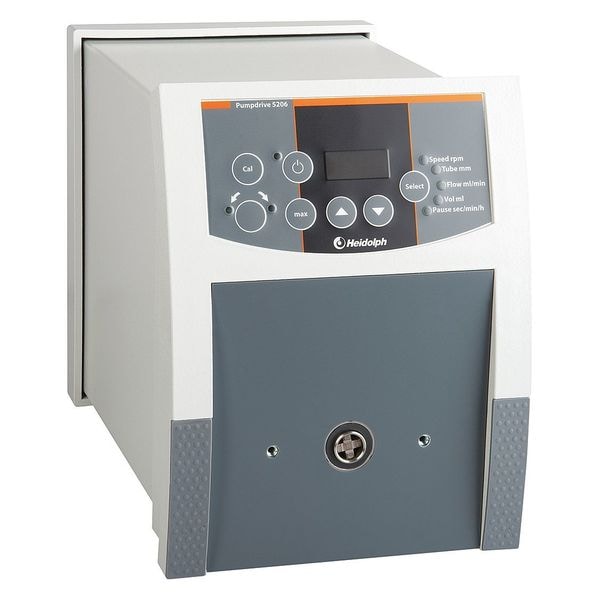

Heidolph Chemical Metering Pump, 24 to 600 rpm 036150110 - main

Chemical Metering Pump, 24 to 600 rpm

  • Mfr # 036150110

  • Zoro # G0253499

product price: $5,806.99
/ea
Free Shipping & Returns

Key Features

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
1542.96 gpd
Max. Pressure - Pumps
29 psi
Voltage - Pumps
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
036150110
Zoro #
G0253499
UPC #
-
Country of Origin
Germany

Dimensions

Width
6 17/32 in
Height
8 55/64 in
Length
10 5/64 in
Overall Width
6.5 in
Overall Height
8.9 in
Overall Length
10.1 in

Details

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
1542.96 gpd
Max. Pressure - Pumps
29 psi
Voltage - Pumps
115V AC
Phase - Pumps
1
Max. Viscosity - Pumps
3,500 cps
HP - Pumps
1/7 hp
Reproducibility - Pumps
+/-2.0%
Ball Material - Pumps
TFE
Hz
60
Min. Flow Rate
1mL/min
Item
Chemical Metering Pump
Tubing Material - Peristaltic Pumps
Sold Separately
Reproducibility
+/-2.0%
Motor RPM
24 to 600
Item - Chemical Metering Pumps
Chemical Metering Pump
Body Material
Metal
Number of Feeds
0
Features
Flow Characteristic of Pump Heads In Combination with Various Tubing Diameters is Pre-Programmed for Accurate Flow Rate Numbers
Standards
EN 61010-1:2010, EN 61326-1:2013, EN IEC 63000:2018, EN ISO 12100:2010
Phase
Single
Tubing Material
Sold Separately
Priming
Self-Priming
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Hydrochloric Acid 10%, Hydrochloric Acid 100%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 100%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Sulfuric Acid 90%, Water
Motor Speed (Maximum)
600 RPM
Flow Rate (Maximum)
1,542.96 gpd
Flow Rate (Minimum)
1 mL/min
Pressure (Maximum)
29 psi
Media Temperature (Minimum)
-80 Degrees C
Motor Mounting Type
Insulated Drive System
Nameplate Voltage
115V AC
Frequency
60 Hz
Roller Material
TFE
Media Temperature (Maximum)
205 Degrees C
Horsepower (Maximum)
1/7 hp
Degassing Valve Included
No
Viscosity (Maximum)
3,500 cps

Description

Chemical Metering Pump
