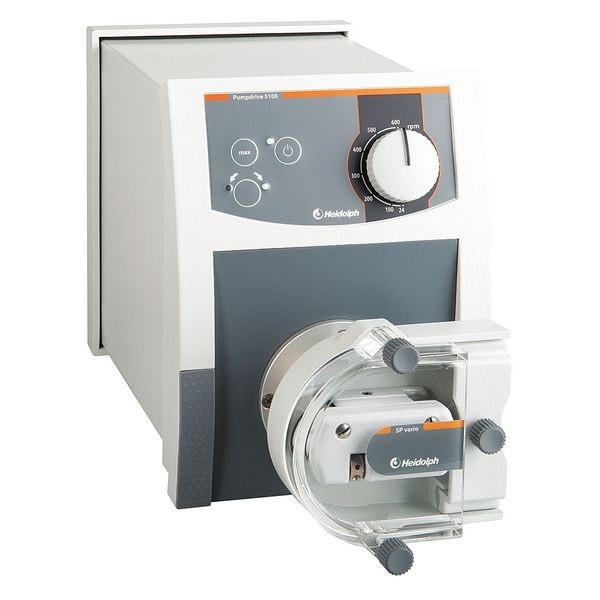

Heidolph Chemical Metering Pump, 64.29 gph 036150070 - main

Chemical Metering Pump, 64.29 gph

  • Mfr # 036150070

  • Zoro # G0253517

product price: $4,517.99
/ea
Free Shipping & Returns

Key Features

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
1542.96 gpd
Max. Pressure - Pumps
29 psi
Voltage - Pumps
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
036150070
Zoro #
G0253517
UPC #
-
Country of Origin
Germany

Dimensions

Height
8 55/64 in
Width
6 17/32 in
Length
10 5/64 in
Overall Length
10.1 in
Overall Height
8.9 in
Overall Width
6.5 in

Details

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
1542.96 gpd
Max. Pressure - Pumps
29 psi
Voltage - Pumps
115V AC
Phase - Pumps
1
Max. Viscosity - Pumps
3,500 cps
HP - Pumps
1/7 hp
Reproducibility - Pumps
+/-3.5%
Tubing Material - Peristaltic Pumps
Sold Separately
Ball Material - Pumps
TFE
Hz
60
Reproducibility
+/-3.5%
Features
Closed Fume Hood, Optional Foot-Pedal Remote Control Via Cable to Start and Stop Your Pump
Number of Feeds
0
Min. Flow Rate
1mL/min
Item - Chemical Metering Pumps
Chemical Metering Pump
Body Material
Metal
Motor RPM
24 to 600
Item
Chemical Metering Pump
Phase
Single
Standards
EN 61010-1:2010, EN 61326-1:2013, EN IEC 63000:2018, EN ISO 12100:2010
Tubing Material
Sold Separately
Media Temperature (Maximum)
205 Degrees C
Flow Rate (Maximum)
1,542.96 gpd
Motor Speed (Maximum)
600 RPM
Motor Mounting Type
Insulated Drive System
Degassing Valve Included
No
Nameplate Voltage
115V AC
Pressure (Maximum)
29 psi
Chemical Compatibility
Viscosity (Maximum)
3,500 cps
Horsepower (Maximum)
1/7 hp
Roller Material
TFE
Priming
Self-Priming
Flow Rate (Minimum)
1 mL/min
Frequency
60 Hz
Media Temperature (Minimum)
-80 Degrees C

Description

Peristaltic Chemical Metering Pump
