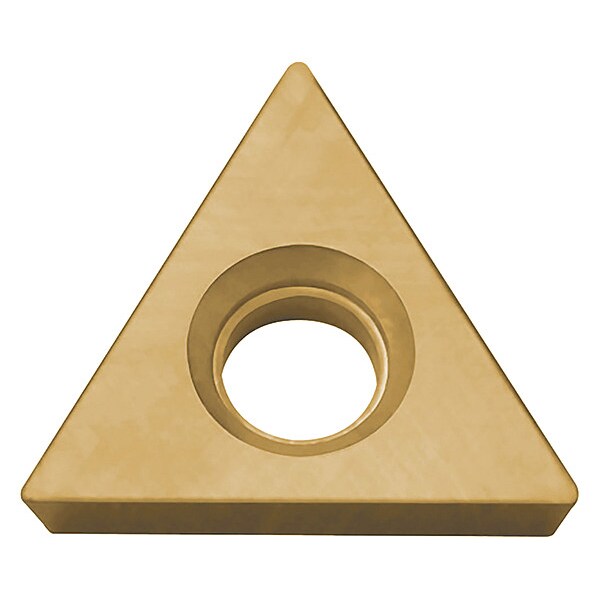

Diamond Turning Insert, Triangle, 1.8, 1

Mfr # TPGB18151PV720
Zoro # G7418173

12.39

Sold in multiples of 10 for $123.90

Key Features

Insert Shape

Triangle

Inscribed Circle

7/32 in

Chip-Breaker

Corner Radius

1/64 in

Rake

Positive

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: TPGB18151PV720
Zoro #: G7418173
UPC #: -
Country of Origin: Multiple

Dimensions

Corner Radius: 1/64 in
Thickness: 3/32 in
Through Hole Inside Dia.: 0.1181"

Details

Item: Diamond Turning Insert
Insert Shape: Triangle
Inscribed Circle: 7/32 in
Chip-Breaker: No
Rake: Positive
ISO Number: TPGB090204
Cutting Direction: Neutral
Features: Megacoat Nano for Efficient Machining with High-Quality Surface Finishes and Superior Wear and Adhesion Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish
Shape: Triangle
Material Grade - Machining: TiCN Component
Primary Material Application: Steel
Secondary Material Application ISO Code: M
Number of Cutting Edges: 3
Hole Type: 70 Degrees to 90 Degrees Countersink Through Hole
Manufacturer Grade: PV720
Finish - Machining: Megacoat Nano
Material - Machining: Cermet
Insert Holding Type: Screw
Included Angle: 60 Degrees
Primary Material Application ISO Code: P
Coating Process: PVD
Cutting Application: Back Boring, Boring, Copying, External Turning, Finishing to Medium Cutting, Internal Facing
Measurement System: Fractional Inch
Secondary Material Application: Stainless Steel
Clearance Angle: 11 Degrees
General Shape: Triangle
ANSI Code: TPGB18151

Description

Diamond Turning Insert, Inscribed Circle 7/32 in, Megacoat Nano, ANSI Code TPGB18151, Clearance Angle 11 Degrees , Coating Process PVD

Restrictions

WARNING: This product can expose you to chemicals including Cobalt metal powder, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
