  6. BrakeMotor, 3/4hp, 1725RPM, 208-230/460VAC
No Product Image Available

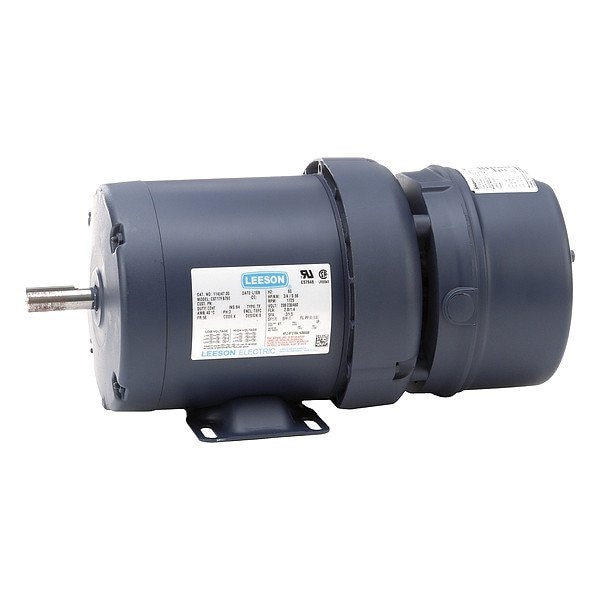

BrakeMotor, 3/4hp, 1725RPM, 208-230/460VAC

  • Mfr # 114147.00

  • Zoro # G411930078

product price:  $1,260.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
208-230/460V AC
Frame
56
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
114147.00
Zoro #
G411930078
UPC #
691720013212
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Overall Length
15 3/16 in
Length Less Shaft
13 3/8 in
Shaft Length
1 7/8 in

Details

HP
3/4 hp
Nameplate RPM
1,725 RPM
Item
Brake Motor
Voltage
208-230/460V AC
Frame
56
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Usable @ 200V
Not Usable at 200V
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Phase
Three
Usable @ 208V
Usable at 208V
Motor Mounting Type
Rigid Base
Nominal Efficiency
77 %
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
RPM Range
1,701-1,800
Motor Frame Material
Steel
Motor Service Factor
1.15
Duty Cycle
Continuous
No. of Speeds
1
Conduit Box Position
F1
Motor Application
General Purpose
Motor Shaft Design
Keyed
Full Load Amps
1.4 A
Hz
60 Hz
Voltage Compatibility
230V AC, 460V AC
Weight
37 lb
Motor Thermal Protection
None
Standards
CSA, UL Listed
Motor Mounting Position
Horizontal
Brake Rating
6 ft-lb
Inverter Rated
Not Inverter Rated

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.4 A Full Load Amps, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
