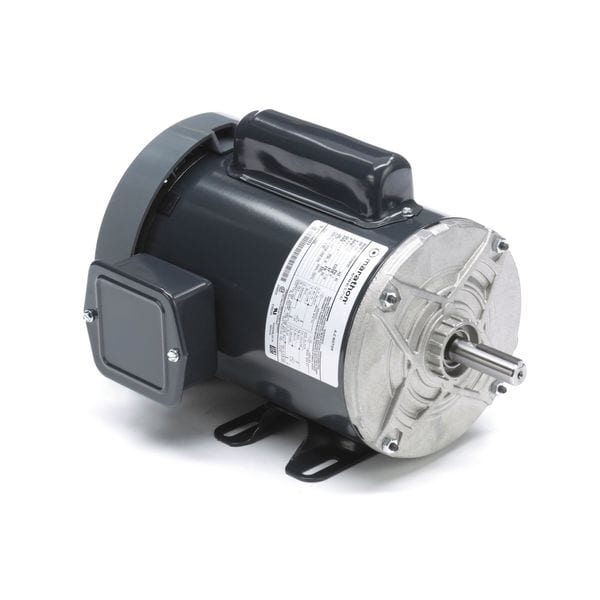

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56 Frame

  • Mfr # 5KC49UN6065

  • Zoro # G6210373

product price:  $534.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/2 hp
RPM Range
1,101-1,200
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5KC49UN6065
Zoro #
G6210373
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Length
12 15/16 in
Shaft Dia.
5/8 in
Length Less Shaft
11 1/16 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/2 hp
RPM Range
1,101-1,200
Voltage
115/230V AC
Frame
56
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,140 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
Duty
Continuous
Full Load Amps
9.4/4.7 A
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
57.7 %
Phase
Single
Frame Material
Steel
Inverter Rated
Not Inverter Rated
Motor Bearings
Ball
RPM Group
1101-1200
Hz
60 Hz
Weight
35 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Capacitor Required
No
Inverter Rating
Not Inverter Rated
Number of Speeds
1
Shaft Design
Keyed
Bearing Type
Ball
Full Load Current @ 60 Hz
9.4/4.7 A
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Application
General Purpose
Insulation Class
B
Efficiency Rating
Standard Efficiency (IE1)
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.4/4.7 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
