Shop LEESON

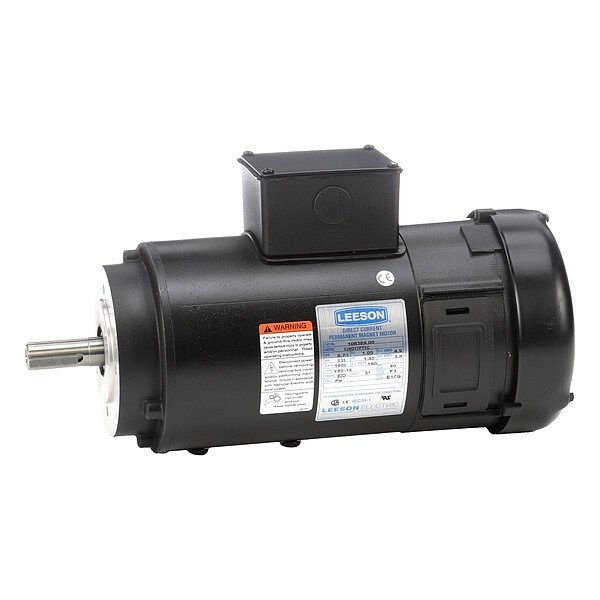

DC Permanent Magnet Motor, 80

  • Mfr # 108369.00

  • Zoro # G111929891

product price:
$
863.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
1,800 RPM
Shaft Dia.
3/4 in
Voltage
180V DC
Frame
80
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
108369.00
Zoro #
G111929891
UPC #
691720006917
Country of Origin
United States

Dimensions

Shaft Dia.
3/4 in
Length Less Shaft
12 1/8 in
Bolt Circle Dia.
3 3/8 in
Overall Length
14 1/8 in
Shaft Length
2 1/16 in
Stud Size
M6 x 1
Bolt Circle Diameter
3 3/8 in
Frame Size
80
Wire Rope Length
14 1/8 in
Shaft Diameter
3/4 in

Details

HP
3/4
Nameplate RPM
1,800 RPM
Item
DC Permanent Magnet Motor
Voltage
180V DC
Frame
80
Motor Design
Permanent Magnet
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Steel
Full Load Amps
4.9 A
Nominal Efficiency
82 %
Ins. Class
F
RPM Range
1,701-1,800
Motor Mounting Type
Special
Max. Ambient Temp.
104 Degrees F
Weight
34 lb
Motor Thermal Protection
None
Motor Application
General Purpose
Standards
CE, CSA Certified, UL Listed
Voltage Compatibility
180V DC
Motor Shaft Design
Keyed
Motor Bearings
Ball
Motor Sub Application
General Purpose
Ambient Temperature - Maximum
104 Degrees F
Frame Material
Steel
Shaft Design
Keyed
Application
General Purpose
Bearing Type
Ball
Full Load Current
4.9 A
Nameplate Voltage
180V DC
Insulation Class
F
Product Type
DC Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor
1

Description

DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 3/4 HP, Nameplate RPM 1,800 RPM, Voltage 180V DC, 4.9 A Full Load Amps, 80 Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Special, Shaft Dia. 3/4 in, Motor Frame Material Steel, Motor Bearings Ball, Shaft Length 2 1/16 in, Motor Shaft Design Keyed
