  11. DC Washdown Motor, 90VDC, 13-7/8 in. L

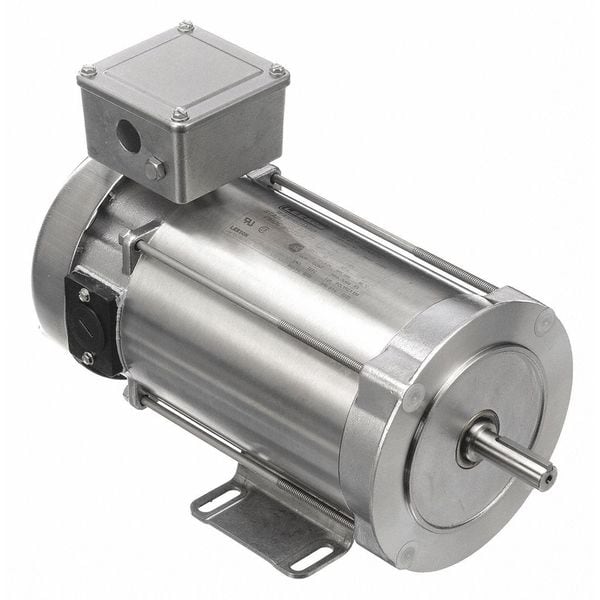

Leeson DC Washdown Motor, 90VDC, 13-7/8 in. L 109069.00 - main

DC Washdown Motor, 90VDC, 13-7/8 in. L

  • Mfr # 109069.00

  • Zoro # G4447969

product price: $1,295.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Magnet DC
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
90V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
109069.00
Zoro #
G4447969
UPC #
691720342947
Country of Origin
United States

Dimensions

Overall Length
13 7/8 in
Body Dia.
6.5 in
Length Less Shaft
11 15/16 in
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
DC Washdown Motor
Motor Design
Permanent Magnet DC
Phase
Single
HP
1/2
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Voltage Compatibility
90V DC
Motor Mounting Type
Face/Base
Features
Stainless Steel Fan Guards, Conduit Box Cover, Interior Surfaces Protected By Enamel/Polyester Coating
Motor Application
Washdown
RPM Group
1701-1800
Full Load Torque
18.0 in-lb
Ins. Class
F
Standards
BISSC, CE, CSA, UL
Nameplate RPM
1,750
Max. Ambient Temp.
40 Degrees C
Full Load Amps
5.2 A
Bearings
Ball
Brush Type
Carbon
Rotation
CW/CCW
Nominal Efficiency
79 %
Motor Service Factor
1
Motor Shaft Rotation
CCW, CW
Motor Bearings
Ball
Conduit Box Location
Exterior
Usable @ 200V
No
Endshield Material
300 Stainless Steel
Usable @ 208V
No
Duty Cycle
Continuous
Weight
46 lb
No. of Speeds
1
Conduit Box Position
F3
Series
Washguard

Description

DC Washdown Motor,1/2 HP,1750,56C,90V
