Shop LEESON

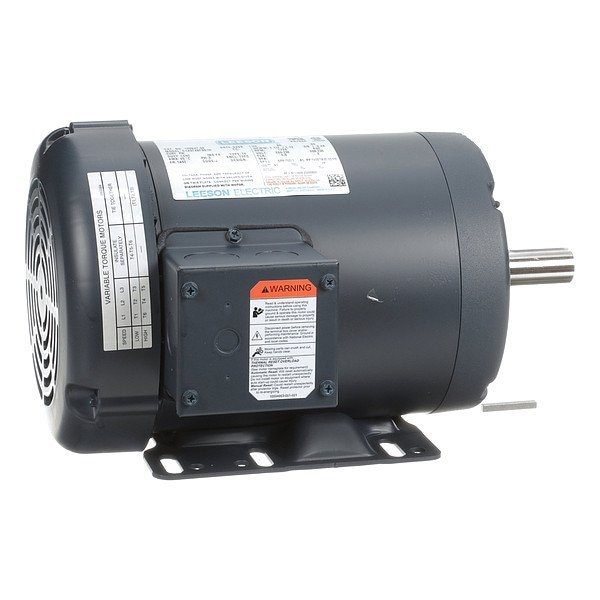

Definite Purpose Motor, 1 1/2 hp

  • Mfr # 120947.00
  • Zoro # G311930741
product price:
$
1,088.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
1,725
Shaft Dia.
7/8 in
Voltage
208V AC to 230V AC
Frame
145T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
120947.00
Zoro #
G311930741
UPC #
691720016367
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Body Dia.
6 1/2 in
Length Less Shaft
10 3/16 in
Overall Length
12 7/16 in
Shaft Diameter
7/8 in
Frame Size
145T
Body Diameter
6.5 in
Wire Rope Length
12 7/16 in
Length
12 7/16 in

Details

HP
1 1/2
Nameplate RPM
1,725
Item
Definite Purpose Motor
Voltage
208V AC to 230V AC
Frame
145T
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Phase
Three
Motor Bearings
Ball
Standards
CSA Certified, UL Listed
Full Load Amps
4.8/2 A
Ins. Class
F
Hz
60 Hz
Motor Thermal Protection
None
Motor Service Factor
1
RPM Range
1,701-1,800
Voltage Compatibility
208V AC to 230V AC
Max. Ambient Temp.
104 Degrees F
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Application
HVAC/R
Bearing Protection
Shaft Shield
Output Watts
1120 W
Weight
39 lb
Conduit Box Position
F1
Motor Shaft Design
Keyed
Inverter Rated
No
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
No. of Speeds
1
Nominal Efficiency
62.5 %
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Motor Sub Application
Definite Purpose
Duty
Continuous
Full Load Current @ 60 Hz
4.8/2 A
Sub Application
Condenser Fan
Wattage
1120 W
Frame Material
Steel
Mounting Position
Horizontal
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1
Inverter Rating
Not Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Application
Fan/Blower
Product Type
Fan and Blower Motor
Insulation Class
F
Shaft Design
Keyed
Drive Type
Direct Drive
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Fan Cooled
Capacitor Required
Capacitor Not Required
Bearing Type
Ball

Description

Definite Purpose Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230V AC, 4.8/2 A Full Load Amps, 145T Frame, Output Watts 1120 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
