Shop LEESON

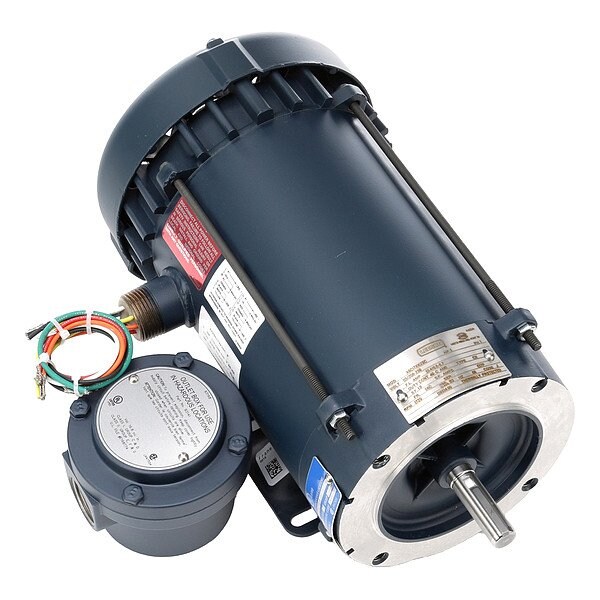

HazardousLocationMotor, 1hp, 1725RPM

  • Mfr # 116614.00

  • Zoro # G911930417

product price:  $1,287.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
115/208-230V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
116614.00
Zoro #
G911930417
UPC #
691720341858
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
12 9/16 in
Shaft Length
1 7/8 in
Overall Length
14 7/16 in
Lead Length
10 in

Details

HP
1 hp
Nameplate RPM
1,725 RPM
Item
Hazardous Location Motor
Voltage
115/208-230V AC
Frame
56C
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Voltage Compatibility
115V AC, 208V AC, 230V AC
Ins. Class
B
Full Load Amps
13.4/6.8-6.7 A
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1
Motor Application
Hazardous Location
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Shaft Rotation
CWSE
Motor Mounting Type
C-Face, Rigid Base
Standards
CSA Certified, UL Listed
Motor Mounting Position
Horizontal
RPM Range
1,701-1,800
Motor Bearings
Ball
Phase
Single
Duty Cycle
Continuous
Weight
40 lb
Nominal Efficiency
72 %
Usable @ 200V
Not Usable at 200V
Includes
Explosion Proof Conduit Box
Motor Shaft Design
Keyed
No. of Speeds
1
Usable @ 208V
Usable at 208V
Motor Frame Material
Steel
Temp. Code
T3B
Hazardous Location Class
Class I, Class II
Hazardous Location Division
Division I
NEMA Design
N
Hazardous Location Group
Group C, Group D, Group F, Group G

Description

Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.4/6.8-6.7 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
