Shop LEESON

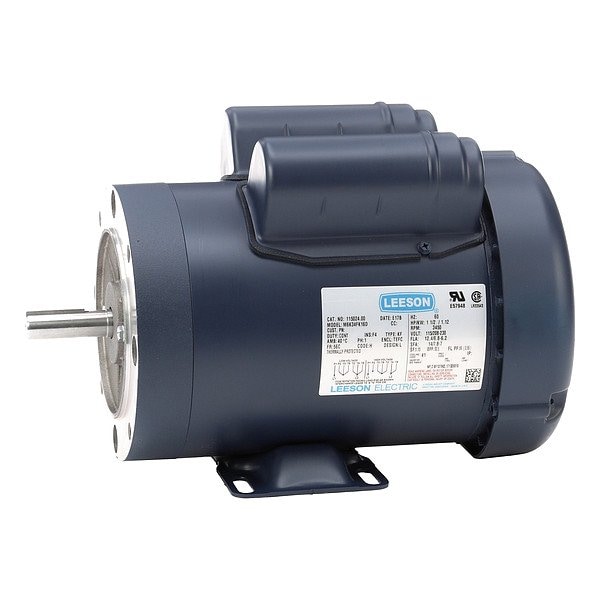

GeneralPurposeMotor, 1-1/2hp, 3450RPM, 56C

  • Mfr # 115024.00

  • Zoro # G711930396

product price:
$
752.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Nameplate RPM
3,450 RPM
Shaft Dia.
5/8 in
Voltage
115/230V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
115024.00
Zoro #
G711930396
UPC #
691720014417
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 1/2 in
Length Less Shaft
10 5/8 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Frame Size
56C
Wire Rope Length
12 1/2 in

Details

HP
1 1/2 hp
Nameplate RPM
3,450 RPM
Item
General Purpose Motor
Voltage
115/230V AC
Frame
56C
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Bearings
Ball
Full Load Amps
6.2 A
No. of Speeds
1
Weight
38 lb
Motor Frame Material
Steel
Motor Application
General Purpose
Hz
60 Hz
Standards
CSA Certified, UL Listed
Motor Mounting Type
C-Face, Rigid Base
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Horizontal
RPM Range
3,001-3,600
Max. Ambient Temp.
40 Degrees C
Conduit Box Position
F1
Motor Shaft Design
Keyed
Phase
Single
Voltage Compatibility
115V AC, 230V AC
Motor Shaft Rotation
CW/CCW
Duty Cycle
Continuous
Ins. Class
F
Nominal Efficiency
82.5 %
Motor Thermal Protection
Manual
Usable @ 208V
Not Usable at 208V
Motor Service Factor
1.15
Brake Rating
6 ft-lb
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
6.2 A
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Application
General Purpose
Insulation Class
F
Frequency
60 Hz
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
General Purpose Motor
Number of Speeds
1

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
