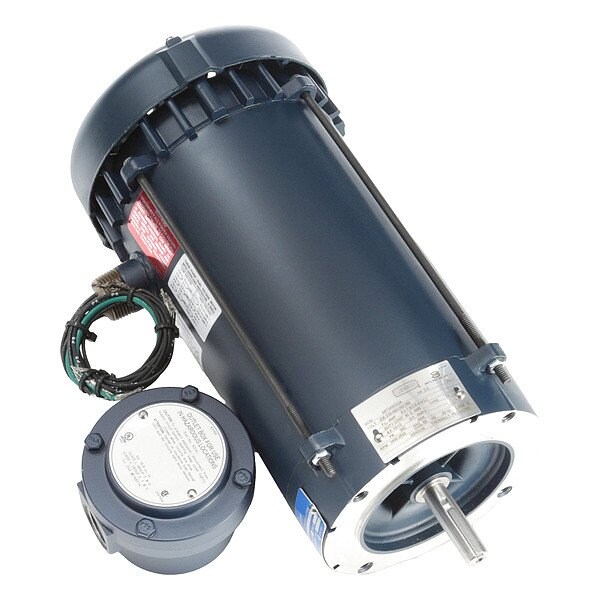

HazardousLocationMotor, 3hp, 3450RPM

  • Mfr # 119435.00

  • Zoro # G311930932

product price:
$
1,633.99
/ea
Free Shipping & Returns

Key Features

HP
3 hp
Nameplate RPM
3,450 RPM
Shaft Dia.
5/8 in
Voltage
208-230/460V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119435.00
Zoro #
G311930932
UPC #
691720047019
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
15 15/16 in
Length Less Shaft
14 1/16 in
Shaft Length
1 7/8 in
Lead Length
6 in
Frame Size
56C
Wire Rope Length
15 15/16 in
Shaft Diameter
5/8 in

Details

HP
3 hp
Nameplate RPM
3,450 RPM
Item
Hazardous Location Motor
Voltage
208-230/460V AC
Frame
56C
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Standards
CSA Certified, UL Listed
Phase
Three
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
Auto
RPM Range
3,001-3,600
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Hz
60/50 Hz
Motor Application
Hazardous Location
Motor Mounting Position
Horizontal
Motor Service Factor
1
Full Load Amps
3.8 A
Motor Mounting Type
C-Face
Ins. Class
B
Voltage Compatibility
208V AC, 230V AC, 460V AC
Full Load Amps @ 50Hz
3.8 A
Motor Frame Material
Steel
Weight
57 lb
HP @ 50Hz
2 hp
Service Factor @ 50Hz
1
Duty Cycle
Continuous
Nominal Efficiency
87.5 %
Includes
Explosion Proof Conduit Box
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
2,850 RPM
No. of Speeds
1
Motor Shaft Design
Keyed
Voltage @ 50Hz
190/380V AC
Usable @ 208V
Usable at 208V
NEMA Design
A
Temp. Code
T3B
Hazardous Location Class
Class I, Class II
Hazardous Location Division
Division I
Hazardous Location Group
Group C, Group D, Group F, Group G
Frame Material
Steel
Number of Speeds
1
Bearing Type
Ball
Mounting Position
Horizontal
Full Load Current @ 60 Hz
3.8 A
Insulation Class
B
Full Load Current @ 50 Hz
3.8 A
Frequency
60/50 Hz
Ambient Temperature - Maximum
40 Degrees C
Application
Hazardous Location
Efficiency Rating
Premium Efficiency (IE3)
Nameplate RPM @ 50 Hz
2,850 RPM
Nameplate Service Factor @ 50 Hz
1
Nameplate Service Factor @ 60 Hz
1
Temperature Code
T3B
Motor Enclosure Type
Totally Enclosed Fan Cooled
NEMA Design Class
A
Nameplate Horsepower @ 50 Hz
2 hp
Shaft Design
Keyed
Product Type
Hazardous Location Motor

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
