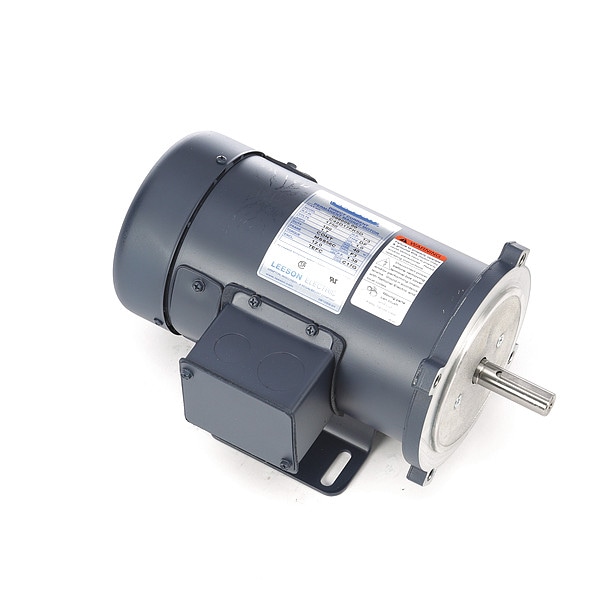

Permanent Magnet DC, 1/3 HP, 180V, 56C

Leeson Permanent Magnet DC, 1/3 HP, 180V, 56C 098005.00
Tap to zoom
Hover or click to zoom
$421.21
  • Item: DC Permanent Magnet Motor
  • HP: 1/3
  • Voltage: 180V DC
See full product details
This item ships free.

Total: $421.21

Leeson #098005.00 Specifications

  • Item: DC Permanent Magnet Motor
  • HP: 1/3
  • Voltage: 180V DC
  • Nameplate RPM: 1,750
  • Shaft Dia.: 5/8 in
  • Frame: 56C
  • Full Load Amps: 1.70
  • RPM Range: 1,701-1,800
  • Motor Thermal Protection: None
  • Includes: Brush Holder Design
  • Removable Base: No
  • Motor Mounting Type: Face/Base
  • Duty Cycle: Continuous
  • Shaft Length: 2 3/50 in
  • Bolt Circle Dia.: 5 7/8 in
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Voltage Compatibility: 180V DC
  • Motor Service Factor: 1.0
  • Standards: CSA Listed, NEMA MG1, UL Listed
  • Max. Ambient Temp.: 40 Degrees C
  • Ins. Class: F
  • Motor Shaft Rotation: CW/CCW
  • Motor Shaft Design: Keyed
  • Motor Application: Washdown
  • Nominal Efficiency: 78.5 %
  • Length Less Shaft: 9 1/4 in
  • Overall Length: 11 31/100 in
  • Weight: 26 lb
  • Motor Mounting Position: Horizontal
  • Motor Design: Permanent Magnet DC
  • Stud Size: Not Found
  • Country of Origin (subject to change): United States

Description

DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/3 HP, Nameplate RPM 1,750, Voltage 180V DC, 1.70 Full Load Amps, 56C Frame, Motor Service Factor 1.0, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Removable Base No, Shaft Dia. 5/8 in, Shaft Length 2 3/50 in
