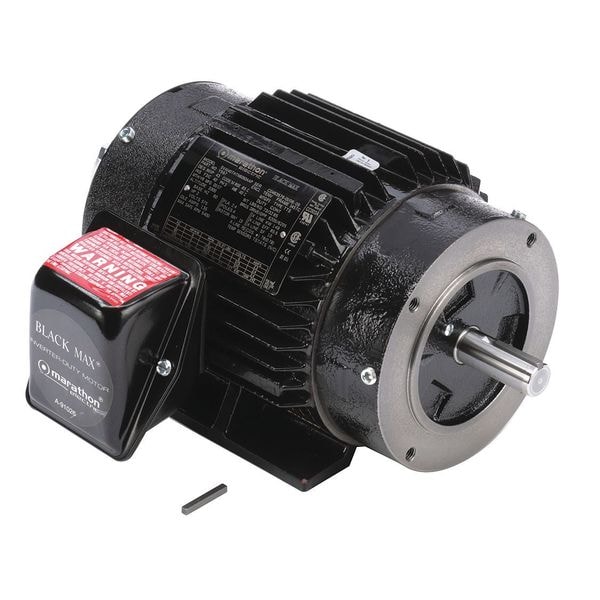

Vector Motor, 2 HP, 6 lb-ft, 575V
Mfr # 145THTN6060
Zoro # G5540071
product price:Â $1,100.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
2
Torque
6 ft-lb
Nameplate RPM
1,750
Speed Range
1,000:1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
145THTN6060
Zoro #
G5540071
UPC #
-
Country of Origin
Multiple
Dimensions
Shaft Dia.
7/8 in
Overall Length
14 11/16 in
Shaft Length
2 1/8 in
Encoder Shaft Dimensions
5/8 in x 1 3/4 in
Description
Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 575V AC, Full Load Amps 2.4 A, 145TC Frame, Torque 6 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
