Leeson

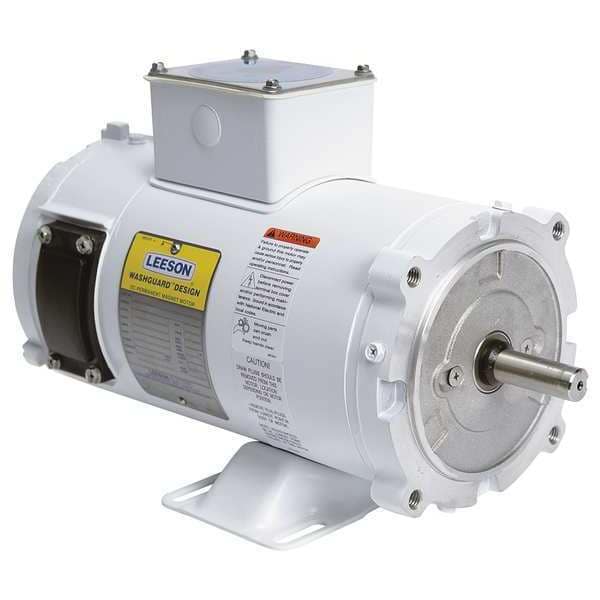

Washdown Motor, 1/3 HP, 90VDC

Leeson Washdown Motor, 1/3 HP, 90VDC 108424.00
Tap to zoom
Hover or click to zoom
$696.98
  • Item: DC Washdown Motor
  • HP: 1/3
  • Voltage: 90V DC
See full product details
This item ships free.
Total: $696.98

Leeson #108424.00 Specifications

  • Item: DC Washdown Motor
  • HP: 1/3
  • Voltage: 90V DC
  • Nameplate RPM: 1,750
  • Shaft Dia.: 5/8 in
  • Frame: 56C
  • Full Load Amps: 3.5
  • Phase: Single
  • RPM Range: 1,701-1,800
  • Motor Thermal Protection: None
  • Rotation: CW/CCW
  • Motor Application: Washdown
  • Motor Enclosure Design: Totally Enclosed Nonventilated
  • Standards: CE, CSA, UL
  • Motor Design: Permanent Magnet DC
  • Max. Ambient Temp.: 40 Degrees C
  • Overall Length: 11 5/8 in
  • Length Less Shaft: 9 11/16 in
  • Voltage Compatibility: 90V DC
  • Motor Mounting Type: Face/Base
  • Body Dia.: 5.6 in
  • Ins. Class: F
  • Shaft Length: 2 1/16 in
  • Motor Service Factor: 1
  • Motor Bearings: Ball
  • Duty Cycle: Continuous
  • No. of Speeds: 1
  • Nominal Efficiency: 74.9 %
  • Finish: Epoxy
  • Motor Shaft Rotation: CCW, CW
  • Endshield Material: 303 Stainless Steel
  • Shaft Material: Stainless Steel
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Manufacturers Warranty Length: 1 yr
  • Bolt Circle Dia.: 5 7/8 in
  • Weight: 29 lb
  • Conduit Box Location: Exterior
  • Product Type: DC Washdown Motor
  • Country of Origin (subject to change): United States

Description

DC Washdown Motor, Single Phase, Motor Design Permanent Magnet DC, 1/3 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 90V DC, Full Load Amps 3.5, 56C Frame, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Rigid Base, Endshield Material 303 Stainless Steel, Finish Epoxy
