Shop LEESON
See all product information

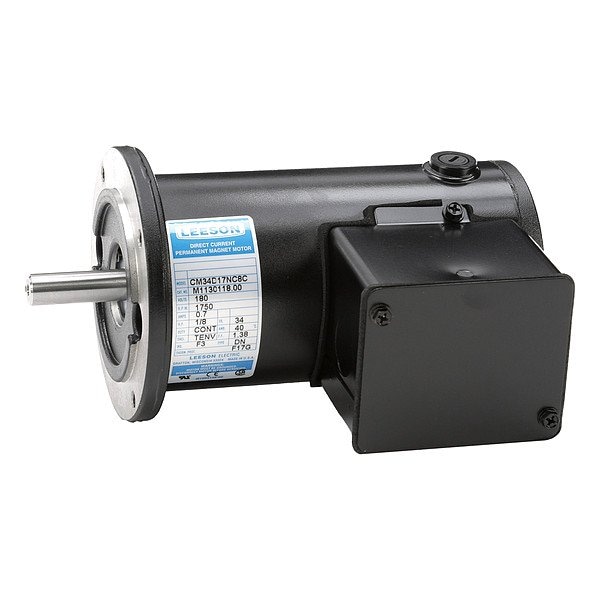

DC Permanent Magnet Motor, 34
Mfr # M1130118.00
Zoro # G212192033
product price:Â $429.99
/ea
Free Shipping & Returns
Key Features
HP
1/8
Voltage
180V DC
Nameplate RPM
1,750 RPM
Shaft Dia.
1/2 in
Frame
34
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- M1130118.00
- Zoro #
- G212192033
- UPC #
- 691720091371
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 1/2 in
- Bolt Circle Dia.
- 3 3/4 in
- Stud Size
- 1/4"-20
- Shaft Length
- 1 3/8 in
- Overall Length
- 7 13/16 in
- Length Less Shaft
- 6 7/16 in
- Frame Size
- 34
- Bolt Circle Diameter
- 3 3/4 in
- Shaft Diameter
- 1/2 in
- Mounting Stud Thread Size
- 1/4"-20
Description
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1/8 HP, Nameplate RPM 1,750 RPM, Voltage 180V DC, 0.70 A Full Load Amps, 34 Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Shaft Dia. 1/2 in, Motor Bearings Ball, Shaft Length 1 3/8 in, Motor Shaft Design Keyed
