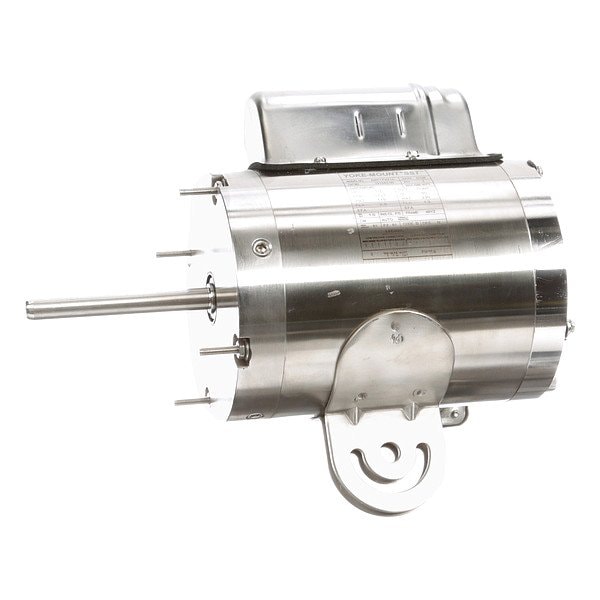

WashdownMotor, 1/4hp, 1735RPM, 115/230VAC
Mfr # 191543.00
Zoro # G111931214
product price: $987.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
48YZ
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
191543.00
Zoro #
G111931214
UPC #
691720052525
Country of Origin
China
Dimensions
Length Less Shaft
7 1/2 in
Overall Length
11 9/16 in
Bolt Circle Dia.
5 1/8 in
Shaft Length
4 1/16 in
Shaft Dia.
1/2 in
Body Dia.
5.5 in
Description
Washdown Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,735 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.6/1.3 A, 48YZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design None, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
