  11. WashdownMotor, 1hp, 1725RPM, 56C, 115/230VAC
No Product Image Available

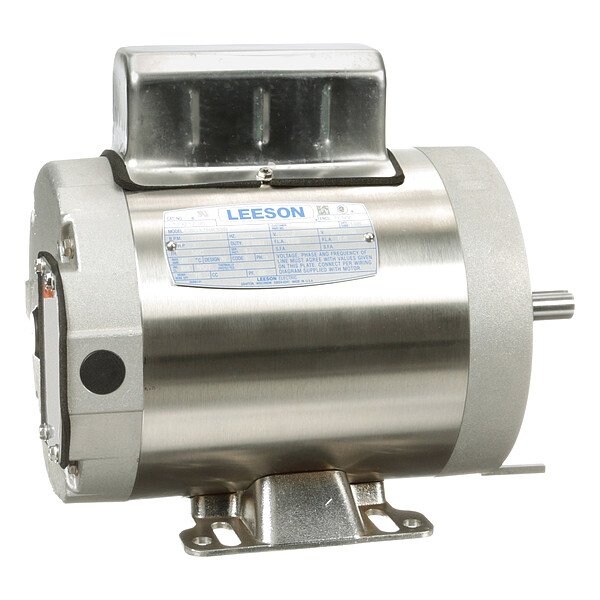

WashdownMotor, 1hp, 1725RPM, 56C, 115/230VAC

  • Mfr # 119217.00

  • Zoro # G111930392

product price: $662.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
115/230V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119217.00
Zoro #
G111930392
UPC #
691720108222
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
9 in
Overall Length
10 15/16 in
Bolt Circle Dia.
5 7/8 in

Details

HP
1 hp
Nameplate RPM
1,725 RPM
Item
Washdown Motor
Voltage
115/230V AC
Frame
56C
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Non-Ventilated
No. of Speeds
1
RPM Range
1725
Max. Ambient Temp.
40 Degrees C
Weight
29 lb
Duty Cycle
Intermittent
Motor Thermal Protection
None
Motor Mounting Position
Horizontal
Motor Frame Material
Stainless Steel
NEMA Design
N
Full Load Amps
12.8/6.4 A
Hz
60 Hz
Ins. Class
B
Motor Service Factor
1
Motor Application
General Purpose
Motor Mounting Type
C-Face
Motor Bearings
Ball
Usable @ 208V
Usable at 208V
Nominal Efficiency
75 %
Finish
Unfinished
Standards
CSA Certified, UL Listed
Voltage Compatibility
115/208-230 V
Usable @ 200V
Not Usable at 200V
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Keyed
Phase
Single
Endshield Material
Aluminum

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.8/6.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, NEMA Design N, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
