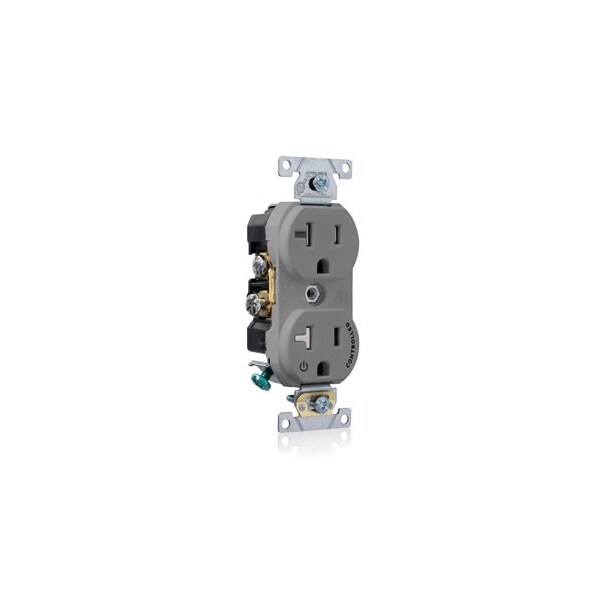

Duplex Receptacle Outlet, 20A, Gray, 125V
- Mfr # TBR20-S1G
- Zoro # G522982065
product price:Â
$
21.45
/ea
Key Features
Maximum Operating Temperature
60 Degrees C
Voltage Rating
125V AC
Housing Material
Polypropylene
Number of Wires
3
Overall Depth
0.8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- TBR20-S1G
- Zoro #
- G522982065
- UPC #
- 078477760963
- Country of Origin
- Mexico
- Maximum Operating Temperature
- 60 Degrees C
- Voltage Rating
- 125V AC
- Housing Material
- Polypropylene
- Number of Wires
- 3
- Grounding
- Grounded
- For Environment
- Food and Beverage, Oily/Greasy
- Horsepower Rating
- 1/2 hp
- Number of Poles
- 2
- Market
- Commercial
- Standards
- CSA, FULS Marking, UL
- Housing Color
- Gray
- Wire Connection Type
- Screw Terminals
- Features
- Smooth Face
- Item
- Duplex Receptacle Outlet
- Resistance Properties
- Tamper Resistant
- Connection Orientation
- Straight
- Minimum Operating Temperature
- -40 Degrees C
- NEMA Receptacle Configuration
- 5-20R
- Wiring Method
- Back/Side
- Number of Outlets
- 2
- Contact Material
- Brass
- Receptacle Type
- Duplex
- Current Rating
- 20 A
Dimensions
- Overall Depth
- 0.8 in
- Mount Hole Center-to-Center Height
- 3.3 in
- Face Plate Width
- 1.4 in
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 14 AWG
- Face Plate Height
- 2.8 in
- Fits Chest Size
- Smooth Face
Description
Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Gray, Housing Material Polypropylene, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp
