Shop LEVITON

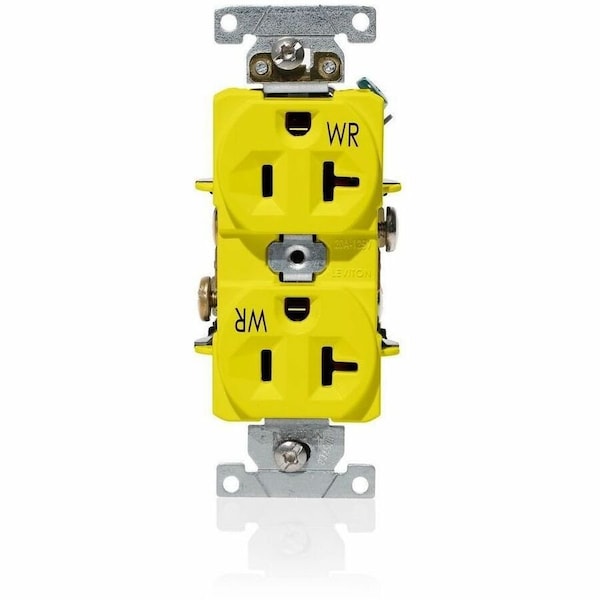

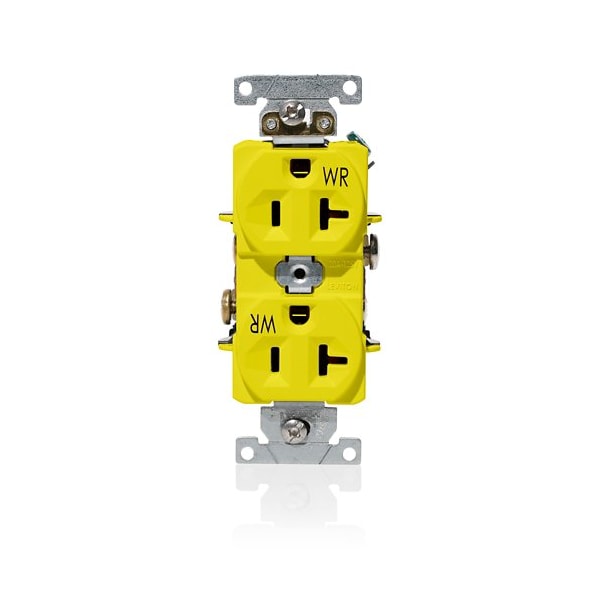

Plugs&Rcptcls, 20A, 125VAC, Ylw, PBT, PK1

  • Mfr # WBR20-Y

  • Zoro # G122586281

product price:
$
123.99
/pk 10, $12.40/ea
Free Shipping & Returns

Key Features

UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Number of Poles
2
Number of Wires
3
Current Rating
20 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WBR20-Y
Zoro #
G122586281
UPC #
78477335314
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.4 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG

Details

UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Number of Poles
2
Number of Wires
3
Current Rating
20 A
Polarized
Yes
Shrouded
No
AFCI
No
Grounding
Grounded
Features
Indented Face
For Environment
Food and Beverage, Oily/Greasy
Wire Connection Type
Screw Terminals
Receptacle Type
Duplex
Number of Gangs
1
Wiring Method
Back/Side
Contact Material
Phosphor Bronze
Maximum Operating Temperature
75 Degrees C
NEMA Receptacle Configuration
5-20R
Resistance Properties
Tamper Resistant, Weather Resistant
Minimum Operating Temperature
-40 Degrees C
Housing Color
Yellow
Number of Outlets
2
Grade
General Use
Horsepower Rating
1 hp
Phase
Single
IP Rating
Not Rated
Flange Type
Non-Flanged
GFCI
No
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Number of Wall Plates Included
0
Surge Protection
No
Voltage Rating
125V AC
Housing Material
PBT Polyester
Mount Type
Flush
Market
Industrial
Item
Plugs and Receptacles
Standards
CSA, FULS Marking, UL

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Yellow, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant
