  6. 3-Phase Belt Drive Motor, 2 1/5, 5 HP, 215T Frame, 460V AC Voltage, 1,765/1,175 Nameplate RPM

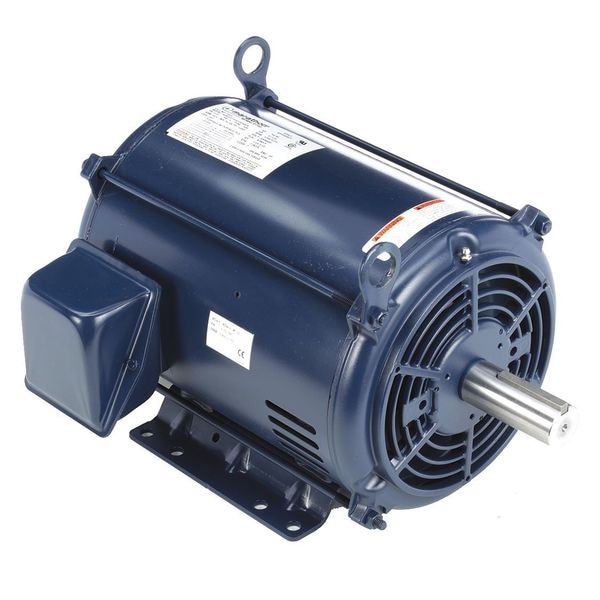

Marathon 3-Phase Belt Drive Motor, 2 1/5, 5 HP, 215T Frame, 460V AC Voltage, 1,765/1,175 Nameplate RPM 215TTDW7203 - main

3-Phase Belt Drive Motor, 2 1/5, 5 HP, 215T Frame, 460V AC Voltage, 1,765/1,175 Nameplate RPM

  • Mfr # 215TTDW7203

  • Zoro # G5833834

product price:  $1,469.70
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
2 1/5, 5
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
215TTDW7203
Zoro #
G5833834
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1 3/8 in
Shaft Length
3 1/2 in
Overall Length
17 5/16 in
Length Less Shaft
13 13/16 in

Details

Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
2 1/5, 5
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,765/1,175
Voltage
460V AC
Frame
215T
Motor Mounting Type
Rigid Base
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Ins. Class
F
Nominal Efficiency
85.5 %
Max. Ambient Temp.
104 Degrees F
Motor Mounting Position
Horizontal
Hz
60 Hz
Motor Shaft Rotation
CW/CCW
Standards
CSA (LR2025), UL (E49747)
Full Load Amps
6.5,3.5 A
Duty
Continuous
Frame Material
Rolled steel
Motor Frame Material
Steel
Motor Bearings
Ball
Motor Shaft Design
Keyed
Usable @ 208V
No
Weight
106 lb
Usable @ 200V
No
Duty Cycle
Continuous
Finish
Blue Epoxy

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 2 1/5 hp, 5 hp HP, Nameplate RPM 1,765/1,175 RPM, No. of Speeds 2, Voltage 460V AC, 6.5 A Full Load Amps, 215T Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
