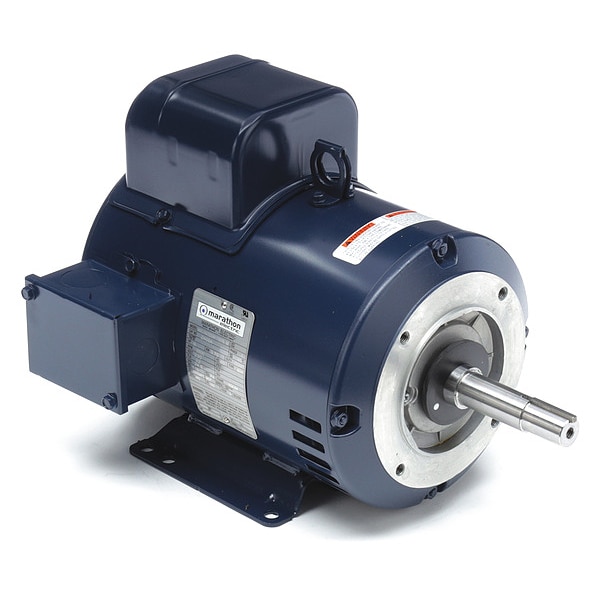

Close-Coupled Pump Motor5 HP, 3500 rpm

  • Mfr # 184TBDW17007
  • Zoro # G5608863
product price:
$
1,066.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
HP
5 hp
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TBDW17007
Zoro #
G5608863
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
16 5/16 in
Length Less Shaft
12 1/16 in
Shaft Dia.
1 5/8 in
Shaft Length
4 1/4 in
Height
11 3/16 in
Bolt Circle Dia.
5 7/8 in
Frame Size
184JM
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
1 5/8 in
Wire Rope Length
16 5/16 in
Length
16 5/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start/Run
HP
5 hp
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
230V AC
Frame
184JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Bearings
Ball
Full Load Amps
22 A
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Frame Material
Steel
Motor Thermal Protection
None
Inverter Rated
Not Inverter Rated
Nominal Efficiency
80 %
Standards
CE, CSA, IP 22, NEMA JM, UL
Ins. Class
F
Motor Frame Material
Steel
Motor Enclosure Design
Open Dripproof
Hz
60 Hz
Motor Efficiency Group
Standard Efficient
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
JM Threaded
Duty
Continuous
Motor Application
Pump
Motor Shaft Rotation
CW/CCW
Phase
Single
Motor Sub Application
Close-Coupled Pump
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Weight
80 lb
Conduit Box Position
F1
Duty Cycle
Continuous
Shaft Type
JM Threaded
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
Standard Efficiency (IE1)
Frequency
60 Hz
Full Load Current @ 60 Hz
22.0 A
Insulation Class
F
Mounting Position
Horizontal
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Shaft Design
Threaded
Shaft Thread Type
JM
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Application
Pump

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 22.0, Height 11 3/16 in, HP 5, Ins. Class F, Inverter Rated No, Length Less Shaft 12 1/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
