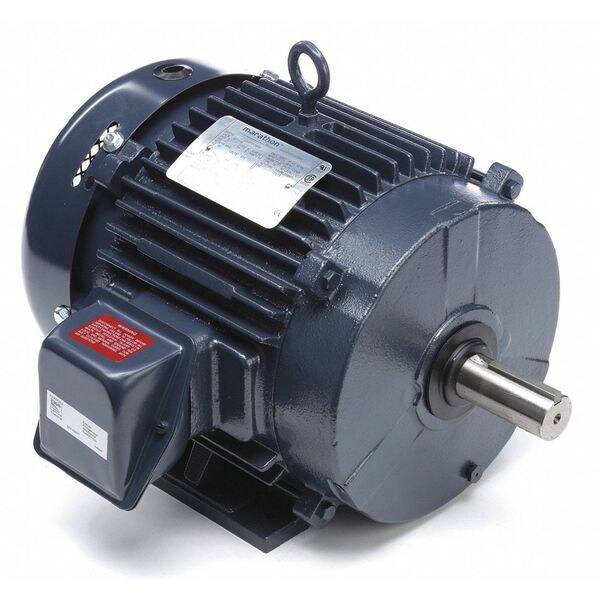

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 575V AC Voltage, 1,770 Nameplate RPM
Mfr # 213TTFCD6030
Zoro # G9815854
product price:Â $1,033.99
/ea
Additional $90.00 delivery surcharge applies per item.
Key Features
HP
7 1/2
Nameplate RPM
1,770
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
7.6 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
213TTFCD6030
Zoro #
G9815854
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
15 1/8 in
Overall Length
18 1/2 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr
Frame Size
213T
Shaft Diameter
1 3/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 213T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
