Shop MARATHON

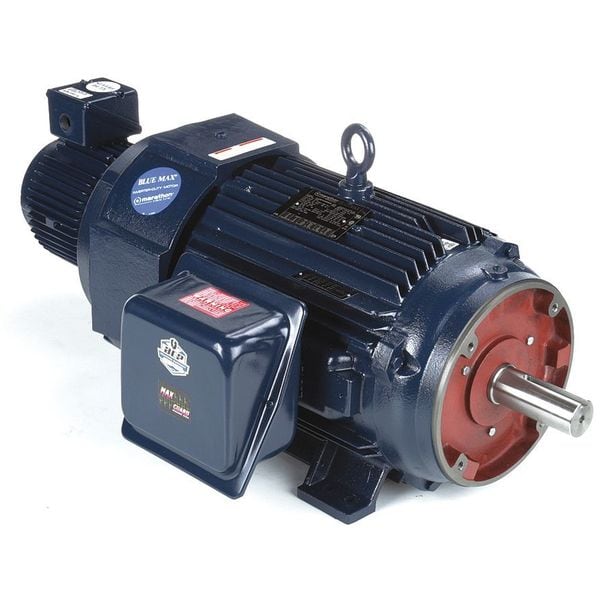

Vector Motor, 3-Phase, 30HP, 230/460V

  • Mfr # 286THFPA8038
  • Zoro # G9922963
product price:
$
8,753.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
30
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
286THFPA8038
Zoro #
G9922963
UPC #
-
Country of Origin
United States
Item
Vector Motor
Motor Design
Three-Phase
HP
30
Nameplate RPM
1,765
Speed Range
2,000:1
Max. Speed
1,800 RPM
Frame
286TC
Voltage
230V AC, 460V AC
Motor Thermal Protection
T-Stat
Hz
60 Hz
Duty
Continuous
Motor Bearings
Ball
Full Load Amps
74.0/37.0 A
Standards
CE, CSA, UL Recognized
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Ins. Class
H
Max. Operating Frequency
90 Hz
Warranty
3 yr
Encoder Acceptable
Yes
Motor Frame Material
Cast Iron
Finish
Enamel
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Insulation Feature
Class F
NEMA Design
A
Base
Rigid
Motor Efficiency Group
Energy Efficient
Phase
Three
RPM Range
1,701-1,800
Nominal Efficiency
91 %
Motor Mounting Type
Rigid Base
Ambient Temperature
40 Degrees C
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Encoder Shaft
1 in x 1-3/4 in
Motor Application
Crane
Frame Material
Cast Iron
Duty Cycle
Continuous
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Conduit Box Location
Exterior
Weight
520 lb
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1, F2
Manufacturers Warranty
3 yr
Inverter Rated
Inverter Rated
Frequency
60 Hz
Full Load Current @ 60 Hz
74.0/37.0 A
Insulation Class
H
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Frame Finish
Enamel-Coated
Maximum Speed
1,800 RPM
Motor Enclosure Type
Totally Enclosed Blower Cooled
Efficiency Rating
NEMA Standard Efficiency
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
A
Maximum Operating Frequency
90 Hz
Product Type
Vector Motor

Description

Vector Motor, Three Phase, Motor Design 3-Phase, 30 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 74.0/37.0 A, 286TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
