No Product Image Available

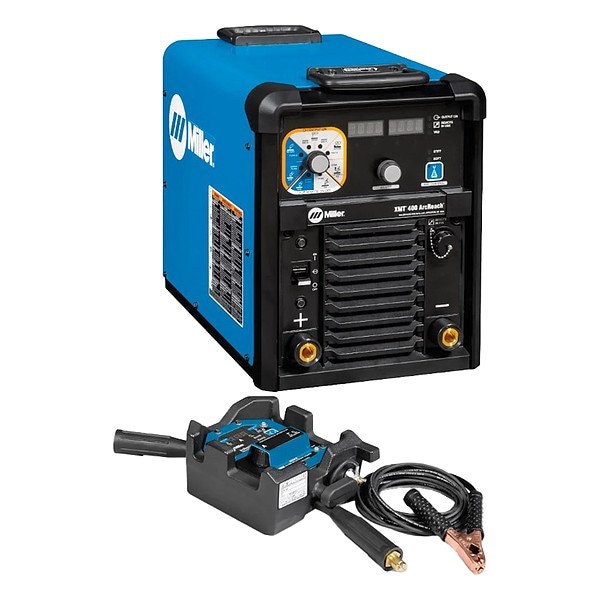

Multiprocess Welder Package, XMT 400, Phase Single-/Three-Phase , IncludesArcReach Stick/TIG Remote

  • Mfr # 951000114

  • Zoro # G014868723

product price:  $12,897.99
/ea
Free Shipping & Returns

Key Features

Series
XMT 400
Phase
Single/Three
Input Voltage
208/220/230/240/380/400/440/460/480/575/600V AC
Includes
ArcReach Stick/TIG Remote
Application
Boat/Yacht, Fabrication, Field Welding, Industrial Welding, Structural Welding
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
951000114
Zoro #
G014868723
UPC #
715959712194
Country of Origin
United States

Dimensions

Overall Depth
20.25 in
Overall Width
12.75 in
Overall Height
17.25 in
Maximum Wire Diameter
.052 in (Solid Wire), 3/32 in (Flux-cored)
Power Cord Length
8 ft
For Minimum Material Thickness
.8 mm (15 amp minimum)
For Maximum Material Thickness
1/2 in
Wire Diameter Flux-Cored - Maximum
0.09375 in
Wire Diameter Solid - Minimum
0.024 in
Wire Diameter Aluminum - Maximum
0.4 in
Wire Diameter Flux-Cored - Minimum
0.03 in
Wire Diameter Solid - Maximum
0.052 in
For Steel Thickness - Minimum
24 ga
For Aluminum Thickness - Maximum
3/8 in
Wire Diameter Aluminum - Minimum
0.35 in
For Stainless Steel Thickness - Maximum
3/8 in
For Steel Thickness - Maximum
3/8 in
For Aluminum Thickness - Minimum
18 ga
For Stainless Steel Thickness - Minimum
18 ga

Details

Item
Multiprocess Welder Package
Series
XMT 400
Phase
Single/Three
Input Voltage
208/220/230/240/380/400/440/460/480/575/600V AC
Includes
ArcReach Stick/TIG Remote
Application
Boat/Yacht, Fabrication, Field Welding, Industrial Welding, Structural Welding
Features
Adjust while Welding, Arcreach Heater Compatibility, Arcreach(R) Technology, Auto-Line(TM) Technology, Auto-process Select(TM), Cable Length Compensation, Control Panel Lock Out, Improved Jobsite Safety, Wind Tunnel Technology(TM)
Standards
cCSAus
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Multiprocess, Pulsed MIG Welding (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW)
Max. Input Current
425 A
Polarity
DC
Effective Input Current
18 A @ 575 V (Three-Phase), 19.9 A @ 575 V (Single-Phase), 21.4 A @ 460 V (Three-Phase), 23.5 A @ 460 V (Single-Phase), 24.4 A @ 400 V (Three-Phase), 27.1 A @ 400 V (Single-Phase), 42.4 A @ 230 V (Three-Phase), 47.4 A @ 208 V (Three-Phase), 52.1 A @ 230 V (Single-Phase), 59.9 A @ 208 V (Single-Phase)
Weight
75 lb
Remote Connection Type
14-Pin (Miller)
Stick Welding Output @ Duty Cycle
300 A @ 32 V DC, 60% (Single-Phase), 400 A @ 36 VDC, 60% (Three-Phase)
For Material Type
Aluminum, Metal, Stainless Steel, Steel
Welding Mode
CC/CV
TIG Welding Output @ Duty Cycle
300 A @ 32 V DC, 60% (Single-Phase), 400 A @ 36 VDC, 60% (Three-Phase)
Input Frequency
50/60 Hz
Open Circuit Voltage
91 V DC
MIG Welding Output @ Duty Cycle
300 A @ 32 V DC, 60% (Single-Phase), 400 A @ 36 VDC, 60% (Three-Phase)
Model
951000114
TIG Welding Minimum Output Current
5 A
Color
Blue
TIG Welding Maximum Output Current
425 A
Stick Welding Minimum Output Current
5 A
Plug Type
Bare Leads
MIG Welding Minimum Output Current
5 A
MIG Welding Maximum Output Current
425 A
Power Cord Included
Yes
Stick Welding Maximum Output Current
425 A
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (MIG)
300 A @ 32 V DC, 60% (Single-Phase), 400 A @ 36 VDC, 60% (Three-Phase)
Amperage TIG - Minimum
5 A
Amperage TIG - Maximum
425 A
Amperage MIG - Minimum
5 A
Maximum Input Current
425 A
Rated Output @ Duty Cycle (TIG)
300 A @ 32 V DC, 60% (Single-Phase), 400 A @ 36 VDC, 60% (Three-Phase)
TIG Arc Start Feature
Lift Arc Start
Rated Output @ Duty Cycle (Stick)
300 A @ 32 V DC, 60% (Single-Phase), 400 A @ 36 VDC, 60% (Three-Phase)
TIG Arc Control Feature
Arc Control
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Minimum
5 A
Amperage MIG - Maximum
425 A
Amperage Stick - Maximum
425 A

Description

Multiprocess Welder Package, Series XMT 400, Input Voltage 208-230/460V AC, 220/230/240V AC, 380/400/440V AC, 460/480V AC, 575/600V AC, Phase Single-/Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Multiprocess, Pulsed MIG Welding (GMAW-P), Regulated Metal Deposition (RMD), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 425 A
