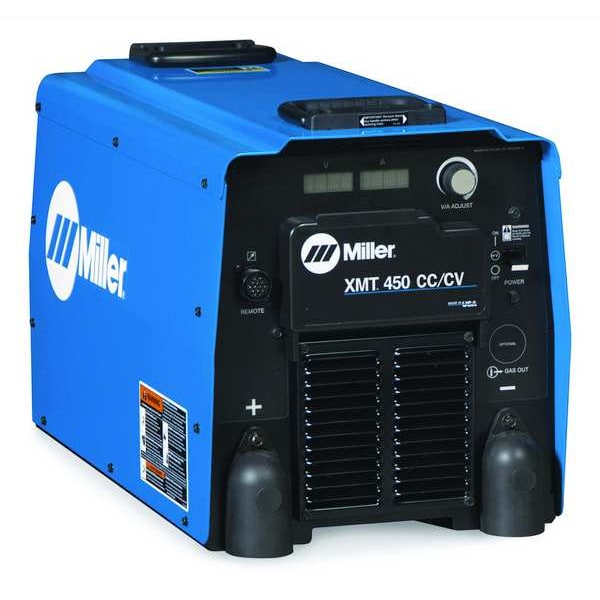

Miller Electric Multiprocess Welder, XMT 450 CC/CV, Phase Three-Phase , 220/230/240V AC, 460/480V AC 907481 - main

Multiprocess Welder, XMT 450 CC/CV, Phase Three-Phase , 220/230/240V AC, 460/480V AC

  • Mfr # 907481

  • Zoro # G5422509

product price:  $9,784.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Series
XMT 450 CC/CV
Phase
Three
Input Voltage
220/230/240/460/480V AC
Function
MIG, Pulsed, Flux-Cored, Stick, TIG
Rated Output
450A @ 37V DC,100%
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907481
Zoro #
G5422509
UPC #
715959556590
Country of Origin
United States

Dimensions

Overall Width (In.)
14 1/2 in
Overall Height (In.)
17 1/4 in
Overall Depth (In.)
27 1/8 in
Maximum Wire Diameter
0.40 in (Aluminum), 0.45 in (Nickel), 0.45 in (Steel)
Overall Width
14.5 in
Overall Height
17.25 in
Overall Depth
27.13 in
Minimum Wire Diameter
0.35 (Aluminum), 0.35 (Nickel), 0.35 (Steel)
For Aluminum Thickness - Maximum
3/8 in
For Steel Thickness - Maximum
3/8 in
Wire Diameter Flux-Cored - Minimum
0.03 in
Wire Diameter Flux-Cored - Maximum
0.035 in
For Steel Thickness - Minimum
24 ga
For Stainless Steel Thickness - Minimum
26 ga
Wire Diameter Solid - Maximum
0.45 in
Wire Diameter Solid - Minimum
0.35 in
For Aluminum Thickness - Minimum
18 ga
For Stainless Steel Thickness - Maximum
3/8 in
Wire Diameter Aluminum - Maximum
0.4 in
Wire Diameter Aluminum - Minimum
0.35 in

Details

Item
Multiprocess Welder
Series
XMT 450 CC/CV
Phase
Three
Input Voltage
220/230/240/460/480V AC
Function
MIG, Pulsed, Flux-Cored, Stick, TIG
Rated Output
450A @ 37V DC,100%
Includes
Power source only
Application
Aerospace, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Input (Amps)
32.1
Features
Standard 14-Pin Receptacle, Welder Friendly Control Panel
OCV
90
Hz
50/60
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
CSA
Amperage Range
15 A to 600 A
Stick Welding Output @ Duty Cycle
450 A @ 38 V, 100%
Polarity
DC
Color
Blue
TIG Welding Maximum Output Current
600 A
Power Cord Included
No
Max. Input Current
51 A @ 230V AC (Three-Phase)
TIG Welding Minimum Output Current
15 A
Weight
122 lb
Stick Welding Minimum Output Current
15 A
TIG Arc Start Feature
Lift Arc Start
MIG Welding Output @ Duty Cycle
450 A @ 38 VDC, 100%
MIG Welding Minimum Output Current
15 A
Remote Connection Type
14-Pin (Miller)
MIG Welding Maximum Output Current
600 A
TIG Welding Output @ Duty Cycle
450 A @ 38 V, 100%
For Material Type
Aluminum, Metal, Stainless Steel, Steel
Welding Mode
CC/CV
Plug Type
Bare Leads
Stick Welding Maximum Output Current
600 A
For Wire Type
Aluminum, Flux-Cored, Solid
Open Circuit Voltage
90 V DC
Input Frequency
60 Hz
Model
907481
Amperage TIG - Minimum
15 A
Minimum Wire Feed Speed
1.3 m/min
Maximum Wire Feed Speed
19.8 m/min
TIG Arc Control Feature
Arc Control
Amperage Stick - Maximum
600 A
Amperage Stick - Minimum
15 A
Amperage MIG - Minimum
15 A
Rated Output @ Duty Cycle (Stick)
450 A @ 38 V, 100%
Rated Output @ Duty Cycle (MIG)
450 A @ 38 VDC, 100%
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage TIG - Maximum
600 A
Rated Output @ Duty Cycle (TIG)
450 A @ 38 V, 100%
Maximum Input Current
51 A @ 230V AC (Three-Phase)
Amperage MIG - Maximum
600 A
Welding Power Source Type
CC/CV

Description

Multiprocess Welder, Series XMT 450 CC/CV, Input Voltage 220/230/240V AC, 460/480V AC, Phase Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 600 A, TIG Welding Maximum Output Current 600 A, MIG Welding Maximum Output Current 600 A, For Wire Type Aluminum, Flux-Cored, Solid
