Shop MILLER ELECTRIC

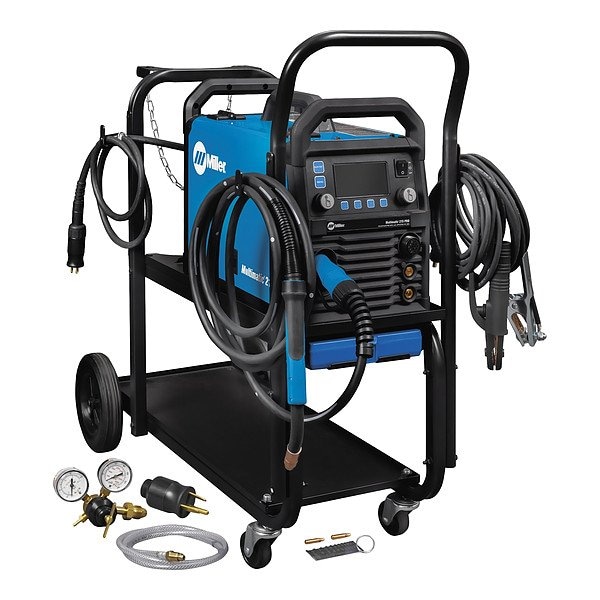

MultiprocessWelder, Miller, Multimatic

  • Mfr # 951000074
  • Zoro # G722656841
product price:
$
3,369.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

For Stainless Steel Thickness - Maximum
3/8 in
Overall Depth
20 in
Rated Output @ Duty Cycle (MIG)
110 A at 19.5 V DC, 60% (120 V), 160 A at 22 V DC, 60% (240 V), 215 A at 24.8 V DC, 30% (240 V)
For Steel Thickness - Minimum
24 ga
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), DC TIG Welding (GTAW-DC)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
951000074
Zoro #
G722656841
UPC #
715959722124
Country of Origin
United States

Dimensions

For Stainless Steel Thickness - Maximum
3/8 in
Overall Depth
20 in
For Steel Thickness - Minimum
24 ga
For Aluminum Thickness - Minimum
18 ga
Wire Diameter Aluminum - Minimum
0.35 in
Wire Diameter Aluminum - Maximum
0.4 in
For Steel Thickness - Maximum
3/8 in
Wire Diameter Solid - Minimum
0.024 in
Wire Diameter Flux-Cored - Maximum
0.035 in
Wire Diameter Flux-Cored - Minimum
0.03 in
Overall Width
9.75 in
For Aluminum Thickness - Maximum
3/8 in
For Stainless Steel Thickness - Minimum
26 ga
Power Cord Length
6 1/2 ft
Wire Diameter Solid - Maximum
0.035 in
Overall Height
14.63 in
Fits Chest Size
Angled Drive System with Quick Select(TM) Drive Roll, Auto Spool Gun Detect, Auto-Set(TM) Technology, Generator Compatible, Inverter Technology, Multi-Voltage Plug (MVP(TM)), Quick Select(TM) Drive Roll, Smooth-Start(TM), Upgradeable Software, Weld Longer

Details

Rated Output @ Duty Cycle (MIG)
110 A at 19.5 V DC, 60% (120 V), 160 A at 22 V DC, 60% (240 V), 215 A at 24.8 V DC, 30% (240 V)
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), DC TIG Welding (GTAW-DC)
Maximum Wire Feed Speed
600 in/min
Power Cord Included
Yes
Effective Input Current
17 A, 25.7 A, 16.6 A, 25 A @ 240V, 21.7 A, 22.7 A, 22.5 A @ 120V
Open Circuit Voltage
57 V DC
For Material Type
Aluminum, Stainless Steel, Steel
Amperage Stick - Maximum
200 A
Input Frequency
50/60 Hz
Minimum Wire Feed Speed
60 in/min
Item
Multiprocess Welder
Standards
cCSAus
Amperage Stick - Minimum
30 A
Application
Automotive Welding, Car Restoration, Fabrication, Garage/Shop, Mobile Fabrication and MRO, Welding Education and Training, Welding Projects
Plug Type
5-15P, 6-50P
Phase
Single
Rated Output @ Duty Cycle (TIG)
140 A at 15.6 V DC, 40% (120 V), 190 A at 17.6 V DC, 20% (240 V)
Amperage MIG - Maximum
230 A
Amperage MIG - Minimum
30 A
Includes
(2) Contact Tips for .030 in. wire, 15 ft (4.6 m) MDX(TM)-100 MIG Gun, 15 ft (4.6 m) Work Cable with Clamp, 15 ft Cable with Electrode Holder and Dinse-Style Connector, 6.5 ft (2 m) Power Cord and MVP(TM) Adapter Plugs, Argon and AR/CO2 Mix Regulator/Flow Gauge with Hose, Hook-and-Loop Cord Wraps, Multimatic(R) 215 PRO, Quick Select(TM) Drive Roll for .024 in or .030/.035 in. solid wire and .030/.035 in. flux-cored wire, Running Gear/Cylinder Rack
Welding Power Source Type
CC, CV
Rated Output @ Duty Cycle (Stick)
190 A at 27.6 V DC, 20% Duty Cycle (240 V), 95 A at 23.8 V DC, 40% Duty Cycle (120 V)
Amperage TIG - Maximum
210 A
Remote Connection Type
14-Pin (Miller)
For Wire Type
Flux-Cored, Solid
Amperage TIG - Minimum
20 A
Input Voltage
120/240V AC
Weight
35 lb
Maximum Input Current
22.7 A @ 120V, 25.7 A @ 240V
Polarity
DC
TIG Arc Start Feature
N/A, DC Only
Features
Angled Drive System with Quick Select(TM) Drive Roll, Auto Spool Gun Detect, Auto-Set(TM) Technology, Generator Compatible, Inverter Technology, Multi-Voltage Plug (MVP(TM)), Quick Select(TM) Drive Roll, Smooth-Start(TM), Upgradeable Software, Weld Longer

Description

Multiprocess Welder, Input Voltage 120/240V AC, Phase Single, Polarity DC, Input Frequency 50/60 Hz, For Wire Type Flux-Cored, Solid, Maximum Wire Feed Speed 600 in/min, Remote Connection Type 14-Pin (Miller)
