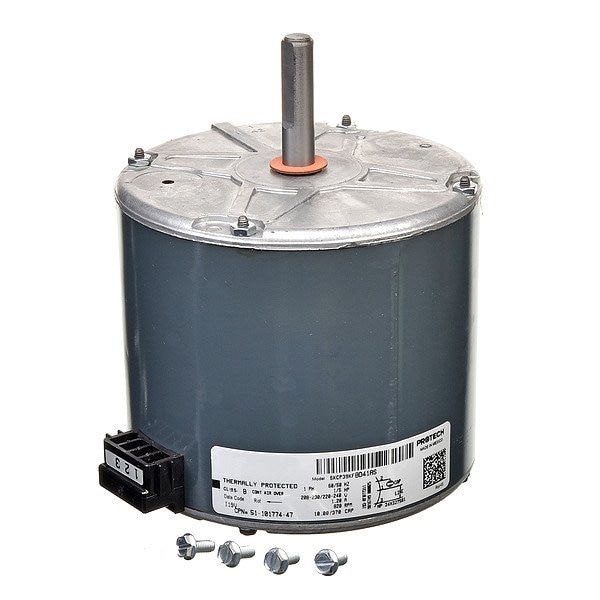

AC Motor, 208/230V AC, Single, 48 Frame Sz
Mfr # 51-101774-47
Zoro # G221692883
product price:Â
$
309.99
/ea
Free Shipping & Returns
Key Features
Shaft Length
2 in
Nameplate RPM @ 50 Hz
825 RPM
Body Diameter
5.7 in
Full Load Current @ 60 Hz
1.2 A
Usable @ 208V
Usable at 208V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 51-101774-47
- Zoro #
- G221692883
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Length
- 2 in
- Body Diameter
- 5.7 in
- Overall Length
- 7 in
- Shaft Diameter
- 1/2 in
- Frame Size
- 48
- Wire Rope Length
- 7 in
- Length
- 7 in
Details
- Nameplate RPM @ 50 Hz
- 825 RPM
- Full Load Current @ 60 Hz
- 1.2 A
- Item
- AC Motor
- Usable @ 208V
- Usable at 208V
- Number of Speeds
- 1
- Application
- Condenser Fan
- Compatible Brand
- Rheem, Ruud
- Nameplate Horsepower @ 50 Hz
- 1/5 hp
- Phase
- Single
- Motor Design
- Permanent Split Capacitor
- Usable @ 200V
- Not Usable at 200V
- Full Load Current @ 50 Hz
- 1.2 A
- Motor Shaft Rotation
- CCWSE
- Product Type
- OEM Replacement Motor
- Bearing Type
- Ball
- Capacitor Required
- Capacitor Not Included
- Frequency
- 60/50 Hz
Description
AC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/5 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208/230V AC, Full Load Amps 1.2 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Thermal Protection Not Applicable, Motor Shaft Rotation CCWSE, Motor Mounting Type Belly Band
