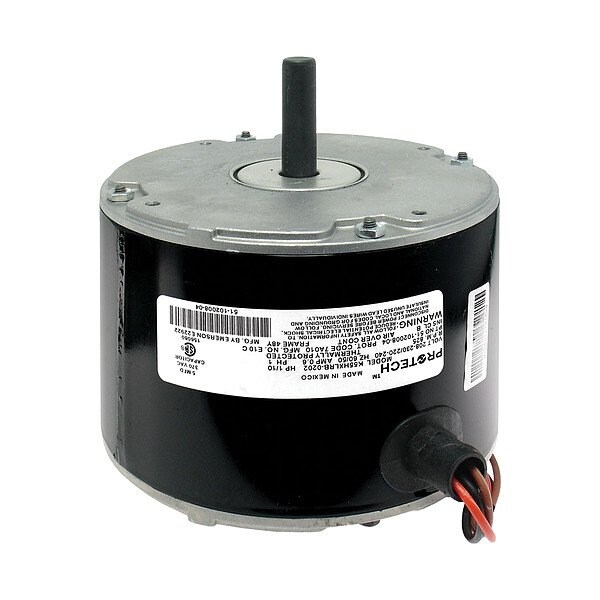

AC Motor, 208/230V AC, Single, 48Y Frame Sz
Mfr # 51-102500-05
Zoro # G121692891
product price:Â $185.99
/ea
Free Shipping & Returns
Key Features
Shaft Diameter
1/2 in
Body Diameter
5.7 in
Number of Speeds
1
Shaft Length
2 15/16 in
Nameplate RPM @ 50 Hz
825 RPM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 51-102500-05
- Zoro #
- G121692891
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Shaft Diameter
- 1/2 in
- Body Diameter
- 5.7 in
- Shaft Length
- 2 15/16 in
- Overall Length
- 3 13/16 in
- Frame Size
- 48Y
- Wire Rope Length
- 3 13/16 in
Details
- Number of Speeds
- 1
- Nameplate RPM @ 50 Hz
- 825 RPM
- Full Load Current @ 50 Hz
- 0.6 A
- Product Type
- OEM Replacement Motor
- Phase
- Single
- Capacitor Required
- Capacitor Not Included
- Full Load Current @ 60 Hz
- 0.6 A
- Motor Design
- Permanent Split Capacitor
- Bearing Type
- Sleeve
- Motor Shaft Rotation
- CCWSE
- Usable @ 208V
- Usable at 208V
- Application
- Condenser Fan
- Usable @ 200V
- Not Usable at 200V
- Drive Type
- Direct Drive
- Nameplate Horsepower @ 50 Hz
- 1/10 hp
- Frequency
- 60/50 Hz
- Compatible Brand
- Rheem, Ruud
- Item
- AC Motor
Description
AC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208/230V AC, Full Load Amps 0.6 A, 48Y Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Thermal Protection Not Applicable, Motor Shaft Rotation CCWSE, Motor Mounting Type Belly Band
