Shop SANDPIPER

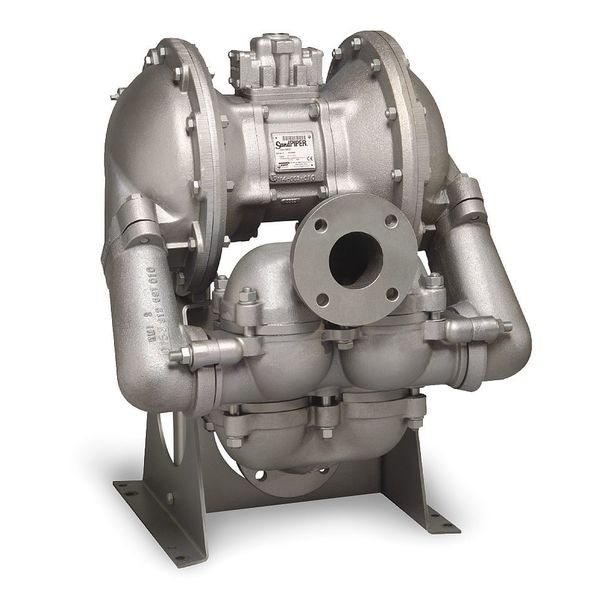

Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 260 gpm GPM 220 Degrees F

  • Mfr # HDB3,DGN4SS.

  • Zoro # G2808477

product price:
$
18,789.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Stainless Steel
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Intake Connection Size
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDB3,DGN4SS.
Zoro #
G2808477
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
5 yr
Overall Length
24.6 in
Overall Width
26 in
Overall Height
31.3 in
Solid Diameter (Maximum)
0.88 in
Media Intake Connection Size
3 in
Media Discharge Connection Size
3 in
Wire Rope Length
24.6 in
Length
24.6 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
PTFE
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
100 psi
Agency Compliance
ATEX, CE, EAC
Self-Priming Wet
25 ft
Pump Operation Type
Air
Self-Priming Dry
20 ft
Standards
ABS Type Approved, CE Marked, EAC Certified, ISO
Inlet/Outlet
3 in
Flow Rate @ 100 psi
100 gpm
Flow Rate @ 80 psi
100 gpm
Media Intake Connection Type
NPT
Flow Rate @ 60 psi
125 gpm
Flow Rate @ 15 psi
75 gpm
Flow Rate (Maximum)
260 gpm
Wetted Housing Material
316 Stainless Steel
Media Discharge Connection Type
NPT
Flow Rate @ 70 psi
75 gpm
Flow Rate @ 40 psi
140 gpm
Flow Rate @ 10 psi
60 gpm
Flow Rate @ 90 psi
55 gpm
Series
HDB3
Series Family
HDB3
Flow Rate @ 20 psi
160 gpm
Flow Rate @ 30 psi
100 gpm
Air Intake Pressure (Maximum)
100 psi
Flow Rate @ 50 psi
75 gpm
Fluid Chamber Assembly Type
Bolted
Manifold Port Connection Type
Single Port
Material Conductivity
Conductive
Media Intake Port Configuration
Center Horizontal
Diaphragm Backing Material
Neoprene
Feet of Head (Maximum)
289 ft
For Use With Potable Systems
No
Diaphragm Reinforcement
Fabric Reinforced
Wetted Body Material
316 Stainless Steel
Media Intake Location
Bottom
Media Discharge Port Configuration
Center Horizontal
Manifold Connection Standard
NPT
Displacement Per Stroke
1.9 gal
Diaphragm Base Material
PTFE
Includes Solenoid
No Solenoid Included
Chemical Compatibility
Antifreeze, Kerosene, Oil, Water
Center Section Material
Aluminum
Media Discharge Location
Top
Includes Clean In Place Technology
No Clean In Place Included
Mounting Hardware Material
Steel

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 260 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 3 in, Media Intake Connection Type NPT, Media Intake Location Bottom
