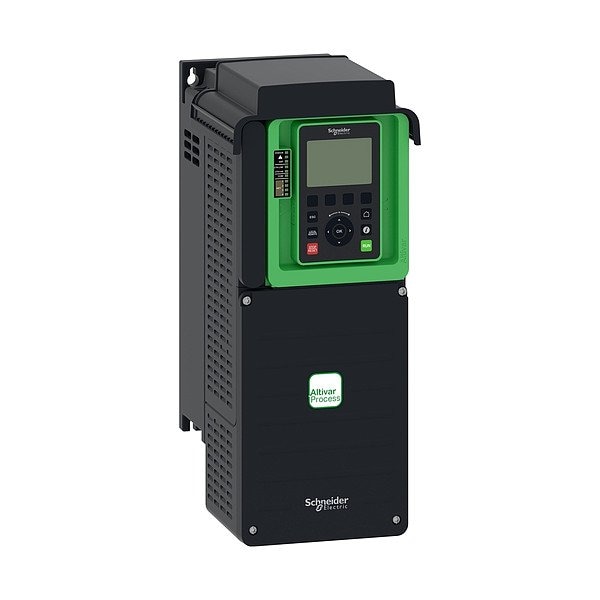

Variable Speed Drive, Black/Green

Mfr # ATV630U55M3US
Zoro # G522731458

3,053.99

Free Shipping & Returns

Key Features

Overall Depth

233 mm

Control Type

PLC

Includes EMI Filter

Adjustable Acceleration Time

0.01 to 9999 sec

Output Frequency - Maximum

500 Hz

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: ATV630U55M3US
Zoro #: G522731458
UPC #: -
Country of Origin: United States

Dimensions

Overall Depth: 233 mm
Overall Height: 409 mm
Overall Width: 171 mm

Details

Control Type: PLC
Includes EMI Filter: No
Adjustable Acceleration Time: 0.01 to 9999 sec
Output Frequency - Maximum: 500 Hz
Number of Outputs - Digital: 0
Number of Inputs - Analog: 3
Torque Application: Constant Torque, Variable Torque
Output Phase: Three
Includes Communication Port: Yes
Output Frequency - Minimum: 0.1 Hz
Standards: ATEX INERIS, ATEX Zone 2/22, CE, CSA, DNV-GL, EN/IEC 61800-3 Environment 2 Category C3, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-3 Environment 1 Category C2, IEC 61800-5-1, TUV, UL, UL 508C
Application: Process and Utilities
Output Voltage: 200-240V AC
Style: Chassis
Number of Inputs - Digital: 8
Number of Outputs - Analog: 2
Output Power - Kilowatt - Maximum: 4 kW, 5.5 kW
Start/Stop Control: Programmable
Color: Black/Green
Dynamic Braking: No
Input Phase: Three
Protection: Circuit Breaker, Drive Thermal Overload, Overspeed, Overvoltage, Phase Failure, Phase to Phase or Phase to Ground Short Circuit, Safe Torque Off, Undervoltage
Product Type: Variable Frequency Drive
Line Contactor Design: With Line Contactor
Input Voltage: 200-240V AC
Accepts External Control Inputs: Yes
Communication Protocols Supported: EtherNet, Modbus Serial, Modbus TCP
Input Type: Analog, Digital
Adjustable Deceleration Time: 0.01 to 9999 sec
Includes Brake Chopper: No
Number of Outputs - Relay: 3
Series: Altivar Process ATV600
Output Type: Analog, Digital, Relay
IP Rating: IP21
Output Horsepower: 5 hp, 7 1/2 hp
Includes Ethernet Port: Yes
Output Current - Maximum: 25.4 A
Item: Variable Speed Drive
Input Frequency: 60/50 Hz
Bypass Design: No Bypass
Wire Color: Black/Green

Description

Variable Speed Drive, Input Voltage 200-240V AC, Input Frequency 60/50 Hz, Output Voltage 200-240V AC
