Shop STANDARD PUMP

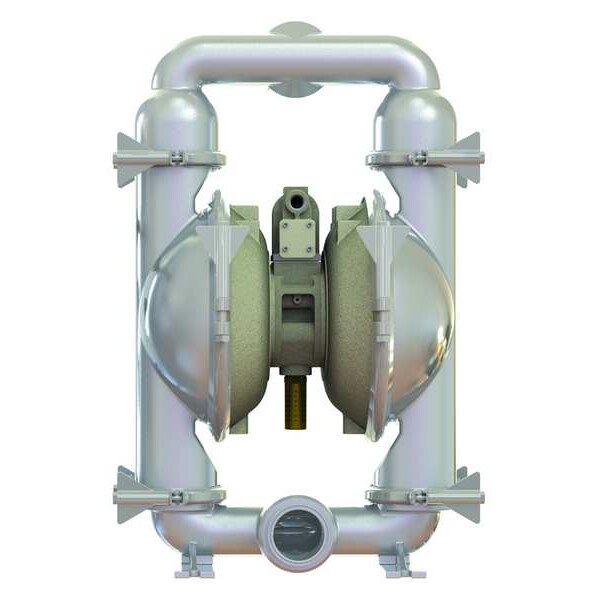

Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE

  • Mfr # SPFP30NPT
  • Zoro # G9818584
product price:
$
12,359.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
316 Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Oil-Less Air Valve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SPFP30NPT
Zoro #
G9818584
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in
Manufacturers Warranty Length
3 yr
Overall Height
32 in
Overall Length
21.5 in
Overall Width
17 in
Media Intake Connection Size
3 in
Media Discharge Connection Size
3 in
Solid Diameter (Maximum)
0.38 in
Wire Rope Length
21.5 in
Length
21.5 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
316 Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Oil-Less Air Valve
Air Consumption (Maximum)
180 scfm
Air Intake Connection Type
FNPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Media Temperature (Minimum)
-35 Degrees F
Operating Pressure (Maximum)
120 psi
Includes
Muffler
Self-Priming Dry
12 ft
Self-Priming Wet
32 ft
Standards
CE Marked
Agency Compliance
ATEX Certified, FDA Compliant
Pump Operation Type
Air
For Use With
Food
Inlet/Outlet
3 in
Priming
Self-Priming
For Use With Potable Systems
Yes
Flow Rate @ 120 psi
180 gpm
Flow Rate @ 40 psi
147 gpm
Media Intake Connection Type
Tri-Clamp
Media Intake Location
Center
Flow Rate @ 60 psi
165 gpm
Flow Rate @ 80 psi
170 gpm
Flow Rate @ 20 psi
130 gpm
Media Discharge Connection Type
Tri-Clamp
Wetted Housing Material
316 Stainless Steel
Viscosity (Maximum)
30,000 cps
Flow Rate @ 100 psi
178 gpm
Manifold Connection Type
Tri-Clamp
Flow Rate (Maximum)
180 gpm
Media Discharge Location
Center
Center Section Material
Aluminum
Manifold Port Connection Type
Single Port
Manifold Connection Standard
Tri-Clamp
Wetted Body Material
316 Stainless Steel
Diaphragm Base Material
PTFE

Description

Double Diaphragm Pump, Air Consumption (Maximum) 180 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Flow Rate (Maximum) 180 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Center, Media Intake Connection Size 3 in, Media Intake Connection Type Tri-Clamp, Media Intake Location Center
