Shop VERSA-MATIC

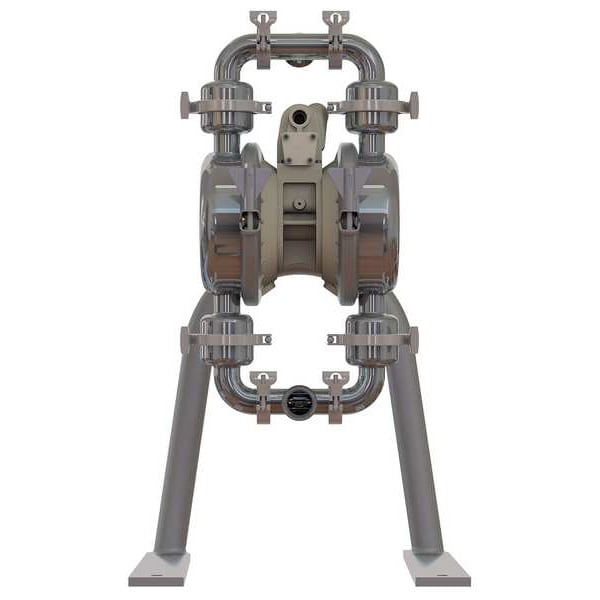

Double Diaphragm Pump, Stainless steel, Air Operated, PTFE, 86 GPM

  • Mfr # E4SJ5F5S0-3A

  • Zoro # G6537955

product price:  $14,487.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
E4SJ5F5S0-3A
Zoro #
G6537955
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in
Manufacturers Warranty Length
1 yr
Overall Height
31.5 in
Overall Length
13.4 in
Overall Width
18.6 in
Solid Diameter (Maximum)
0.38 in
Media Intake Connection Size
1 1/2 in
Media Discharge Connection Size
1 1/2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Intake Connection Type
FNPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
PTFE
Media Temperature (Maximum)
220 Degrees F
Operating Pressure (Maximum)
125 psi
Self-Priming Wet
20 ft
Self-Priming Dry
10 ft
Standards
3A Certified, CE Marked, EAC Certified
Pump Operation Type
Air
Agency Compliance
3A Certified, CE, EAC
For Use With
Applications that are required to meet 3A Sanitary Standards
Inlet/Outlet
1 1/2 in
Manifold Connection Type
Tri-Clamp
Media Intake Connection Type
Tri-Clamp
Flow Rate (Maximum)
86 gpm
Wetted Housing Material
316 Stainless Steel
Series Family
E4
Air Intake Pressure (Maximum)
125 psi
Media Discharge Connection Type
Tri-Clamp
Wetted Body Material
316 Stainless Steel
Material Conductivity
Non-Conductive
Series
E4
For Use With Potable Systems
Yes
Includes Clean In Place Technology
Clean In Place Included
Manifold Port Connection Type
Single Port
Surface Roughness
32u-in (Ra 0.8u-m)
Includes Solenoid
No Solenoid Included
Mounting Hardware Material
Stainless Steel
Manifold Connection Standard
Tri-Clamp
Displacement Per Stroke
0.12 gal
Media Discharge Port Configuration
Center Horizontal
Fluid Chamber Assembly Type
Clamp
Diaphragm Reinforcement
Overmolded
Media Intake Location
Bottom
Diaphragm Base Material
PTFE
Media Discharge Location
Top
Media Intake Port Configuration
Center Horizontal
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Oil-Based Paint, Oil, Phosphoric Acid 40%, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sulfuric Acid 10%, Water
Feet of Head (Maximum)
289 ft

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 1/2 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 86 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Tri-Clamp
