  11. Swivel Plate Caster, Rubber, 3-1/8 in, 308 lb
Zoro Select Swivel Plate Caster, Rubber, 3-1/8 in, 308 lb LEX-POEV 80XR-FI-SG - main

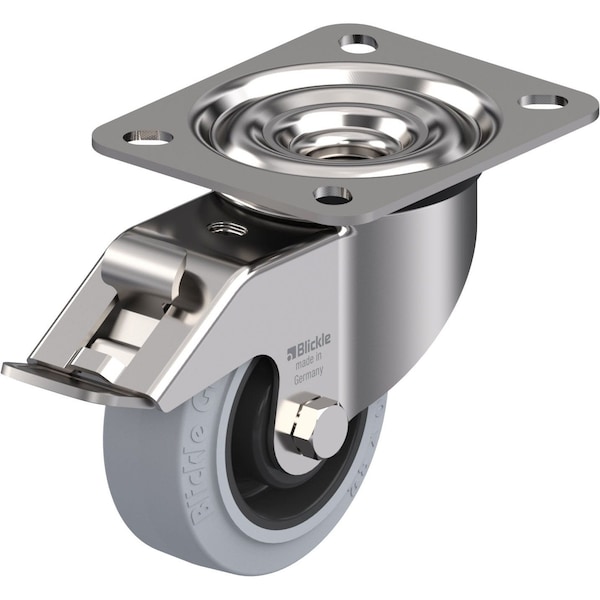

Swivel Plate Caster, Rubber, 3-1/8 in, 308 lb

  • Mfr # LEX-POEV 80XR-FI-SG

  • Zoro # G0385826

product price: $68.45
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
Total Lock
Wheel Dia.
3 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LEX-POEV 80XR-FI-SG
Zoro #
G0385826
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 1/8 in
Wheel Width
1 1/4 in
Mounting Height
4 in
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
4in
Swivel Radius
78 mm
Bolt Hole Spacing - Width
2.375 in
Overall Wheel Width
1 1/4 in
Mounting Plate Length
3 3/8 in
Bolt Hole Spacing - Length
3.156 in
For Axle Dia.
8 mm

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
Total Lock
Load Rating
305 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Application
Retail, Industrial, Commercial
Features
Corrosion Resistant
Replacement Wheel
Mfr. No. POEV 80/12XR-SG
Standards
RoHS, ICWM
Extended Lead
No
Caster Brake Included
Yes
Frame Finish
Stainless Steel
Caster Temp. Range Available
No
Thread Guards
No
Wheel Color
Gray
Caster Stem Type
No Stem/Plate Included
Tread Color
Gray
Includes
Stop-Fix Total-Lock Brake
Tread
Standard
Swivel Lock Type
Total Lock
Wheel Core Material
Nylon
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Soft
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Load Capacity
140 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Series
LEX Series
Caster Features
Corrosion-Resistant, Debris-Resistant
Compatible With
POEV 80/12XR-SG
Load Capacity - Maximum
310 lb
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Bearing Material
Steel
Brake Location
Rear
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 305 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 1/8 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
