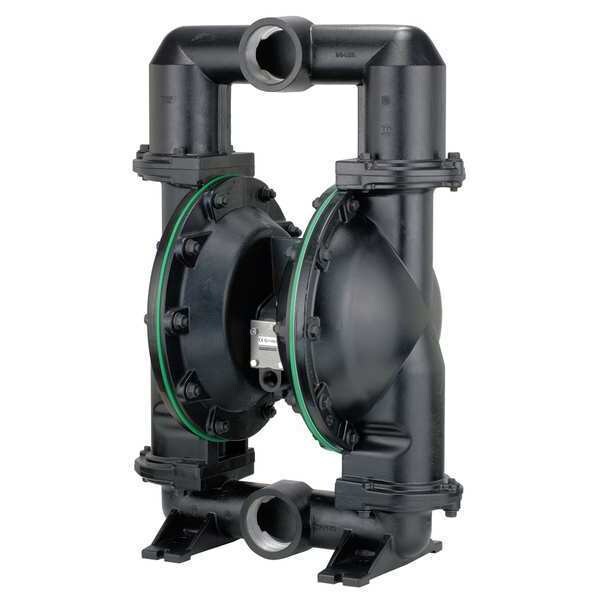

Double Diaphragm Pump, Aluminum, Air Operated, Buna-N, 237 gpm GPM 180 Degrees F

  • Mfr # 666300-G22-C

  • Zoro # G2160420

product price:
$
4,493.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
666300-G22-C
Zoro #
G2160420
UPC #
-
Country of Origin
China

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
5 yr
Overall Width
24.4 in
Overall Length
22.2 in
Overall Height
32.3 in
Solid Diameter (Maximum)
0.37 in
Media Intake Connection Size
3 in
Media Discharge Connection Size
3 in
Wire Rope Length
22.2 in
Length
22.2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
Buna-N
Diaphragm Material
Buna-N
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
10 Degrees F
Operating Pressure (Maximum)
120 psi
Pump Operation Type
Air
Self-Priming Wet
21 ft
Self-Priming Dry
17 3/5 ft
Agency Compliance
ATEX, CE, REACH, RoHS
Inlet/Outlet
3 in
Standards
ATEX Certified
Flow Rate @ 120 psi
237 gpm
For Use With Potable Systems
Yes
Flow Rate (Maximum)
237 gpm
Series Family
6663
Series
Pro
Flow Rate @ 40 psi
0 gpm
Media Intake Connection Type
NPT
NPSHr
35 ft of head
Wetted Housing Material
Aluminum
Media Discharge Connection Type
NPT
Feet of Head (Maximum)
289 ft
Flow Rate @ 70 psi
0 gpm
Air Intake Pressure (Maximum)
10 psi
Priming
Self-Priming
Includes Solenoid
No Solenoid Included
Diaphragm Reinforcement
Fabric Reinforced
Manifold Port Connection Type
Single Port
Fluid Chamber Assembly Type
Bolted
Material Conductivity
Conductive
Media Intake Location
Bottom
Wetted Body Material
Aluminum
Diaphragm Base Material
Buna-N
Center Section Material
Aluminum

Description

Double Diaphragm Pump, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material Buna-N, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 237 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPTF, Media Intake Connection Size 3 in, Media Intake Connection Type NPTF, Media Temperature (Maximum) 180 Degrees F, Operating Pressure (Maximum) 120 psi, Priming Self-Priming
