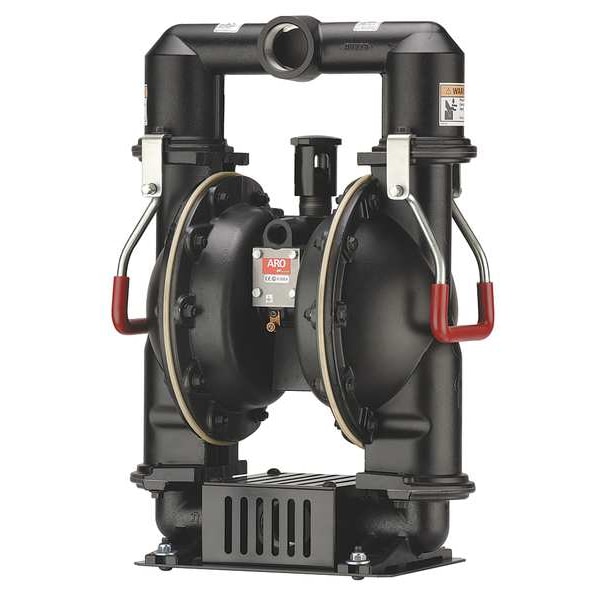

Double Diaphragm Pump, Aluminum, Air Operated, Nitrile, 217 GPM

  • Mfr # 66M300-122-C

  • Zoro # G1132826

product price:  $5,070.99
/ea
Additional $100.00 delivery surcharge applies per item.
See details

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
66M300-122-C
Zoro #
G1132826
UPC #
-
Country of Origin
China

Dimensions

Air Intake Connection Size
3/4 in
Manufacturers Warranty Length
5 yr
Overall Width
16 in
Overall Height
32.6 in
Overall Length
16 in
Solid Diameter (Maximum)
0.5 in
Media Intake Connection Size
3 in
Media Discharge Connection Size
3 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Air Consumption (Maximum)
180 scfm
Air Intake Connection Type
NPT
Check Seat Material
Aluminum
Diaphragm Material
Buna-N
Media Temperature (Maximum)
180 Degrees F
Media Temperature (Minimum)
10 Degrees F
Operating Pressure (Maximum)
120 psi
Pump Operation Type
Air
Self-Priming Dry
15 ft
Self-Priming Wet
25 ft
Agency Compliance
ATEX, CE, REACH, RoHS
Standards
ATEX Certified
Inlet/Outlet
3 in
Series Family
Specialty
Mounting Hardware Material
Aluminum/Steel
Flow Rate @ 60 psi
198.8 gpm
Media Intake Connection Type
NPT
Media Intake Location
Bottom
For Use With Potable Systems
No
Flow Rate @ 90 psi
229.2 gpm
Media Discharge Location
Center
Feet of Head (Maximum)
289 ft
Flow Rate (Maximum)
236 gpm
Flow Rate @ 40 psi
170 gpm
Media Discharge Connection Type
NPT
Nameplate Voltage
N
Series
66M1X0
Flow Rate @ 70 psi
206 gpm
Manifold Connection Type
NPT
Viscosity (Maximum)
50,000 cps
Flow Rate @ 100 psi
235 gpm
Flow Rate @ 50 psi
188 gpm
Priming
Self-Priming
Air Intake Pressure (Maximum)
120 psi
Flow Rate @ 80 psi
220.5 gpm
Chemical Compatibility
Alcohol, Antifreeze, Oil-Based Paint, Oil, Water
Flow Rate @ 120 psi
236 gpm
Wetted Housing Material
Aluminum
Wetted Body Material
Aluminum
Manifold Connection Standard
NPT
Includes Solenoid
No Solenoid Included
Fluid Chamber Assembly Type
Bolted
Center Section Material
Aluminum
Manifold Port Connection Type
Single Port
Diaphragm Base Material
Buna-N
Material Conductivity
Conductive
Diaphragm Reinforcement
Fabric Reinforced

Description

Double Diaphragm Pump, Air Consumption (Maximum) 180 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type FNPT, Check Seat Material Aluminum, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 236 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 3 in, Media Intake Connection Type FNPT, Media Intake Location Bottom
