Mtr, Sh Pole, 1/10 HP, 1550,115/208-230, 42Y

  • Zoro #: G0538675
  • Mfr #: RF4400

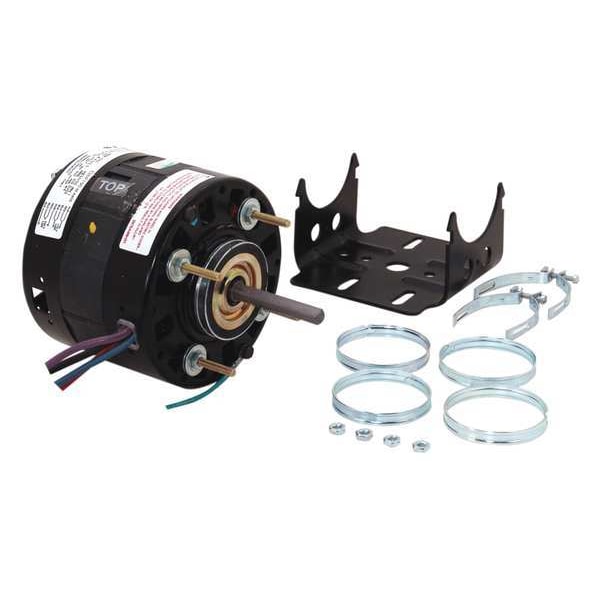

Century Mtr, Sh Pole, 1/10 HP, 1550,115/208-230, 42Y RF4400
Century Mtr, Sh Pole, 1/10 HP, 1550,115/208-230, 42Y RF4400
$119.71
  • Motor Thermal Protection: Auto
  • Application: Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
  • Length Less Shaft: 4 15/16 in
See full product details
This item ships free.

Century #RF4400 Specifications

  • Zoro #: G0538675
  • Mfr #: RF4400
Motor Thermal Protection: Auto Application: Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment
Length Less Shaft: 4 15/16 in Capacitor Required: No
Ring to Ring Center: 4 9/16 in No. of Speeds: 1
Motor Enclosure Design: Open Air-Over Frame: 42Y
Motor Shaft Rotation: CWSE Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Phase: Single Shaft Length: 2 1/4 in
Motor Mounting Position: All Angle Motor Application: HVAC/R
Motor Sub Application: Refrigeration Voltage: 115/208-230V AC
Standards: CSA Certified, UL Recognized Motor Design: Shaded Pole
HP: 1/10 Body Dia.: 5 in
Motor Shaft Design: Flat Full Load Amps: 4.0/2.00
Stud Size: #10-32 Motor Mounting Type: Extended Stud
Motor Bearings: Sleeve Hz: 60
Shaft Dia.: 3/8 in Max. Ambient Temp.: 40 Degrees C
Includes: Extended Studs, Resilient Rings, Mounting Clamps, Mounting Ring Adaptors, Hex Nuts Nameplate RPM: 1,550
Motor Service Factor: 1 Duty: Continuous
Mounting Stud Pattern: 2-1/2 in x 2-1/2 in RPM Range: 1,501-1,600
Ins. Class: A Resilient Ring Dia.: 2 1/4 in
Mounting Stud Location: Shaft End Bolt Circle Dia.: 3 1/2 in
Item: HVAC Motor Duty Cycle: Continuous
Number of Shafts: 1 Weight: 10 lb
Stud Quantity: 4 Overall Length: 7 3/16 in
Mounting Holes: (4) #10-32 Usable @ 208V: Yes
Lead Length: 29 in Usable @ 200V: No
Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/10 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.0/2.00, 42Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 29 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Extended Stud, Motor Mounting Position All Angle
