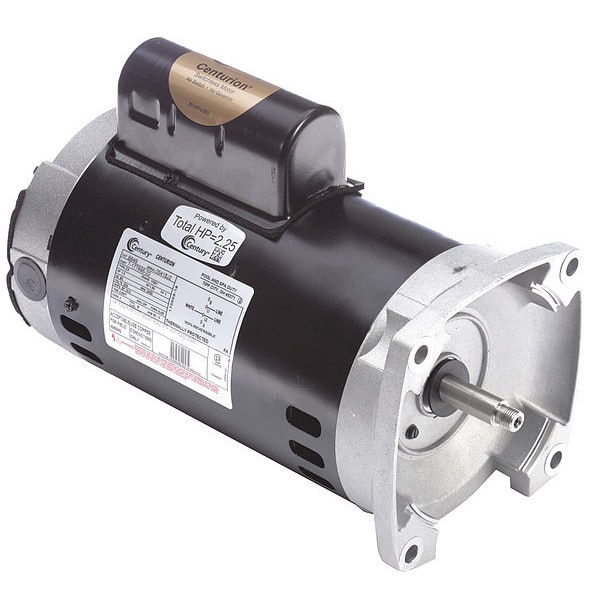

Pool Pump Motor, Permanent Split Capacitor, 1 1/2 HP, 56Y Frame, 3,450 Nameplate RPM

Century Pool Pump Motor,  Permanent Split Capacitor,  1 1/2 HP,  56Y Frame,  3,450 Nameplate RPM B2849
Tap to zoom
Hover or click to zoom
$349.99
  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.

Total: $349.99

Century #B2849 Specifications

  • Item: Pool Pump Motor
  • Motor Design: Permanent Split Capacitor
  • Motor Enclosure Design: Open Dripproof
  • HP: 1 1/2
  • Motor Service Factor: 1.5
  • RPM Range: 3,001-3,600
  • Nameplate RPM: 3,450
  • Frame: 56Y
  • Motor Shaft Rotation: CCWSE
  • Voltage: 230V AC
  • Phase: Single
  • Motor Mounting Type: Face
  • Full Load Amps: 10.0/3.5
  • Motor Sub Application: Pool and Spa Pump
  • Shaft: Threaded 1/2-20 UNF-2A RH
  • Shaft Length: 15/16 in
  • Motor Flange Material: Aluminum
  • Shaft Material: Stainless Steel
  • Shaft Dia.: 5/8 in
  • Ambient Temperature: 50 Degrees C
  • Motor Thermal Protection: Auto
  • Finish: Black
  • Ins. Class: B
  • Motor Application: Pump
  • Motor Bearings: Ball
  • Hz: 60
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
  • Standards: CSA (LR4642), UL (E14663)
  • Motor Efficiency Group: Standard Efficient
  • Max. Ambient Temp.: 50 Degrees C
  • Motor Mounting Position: Horizontal
  • Overall Length: 13 7/16 in
  • Duty Cycle: Continuous
  • Length Less Shaft: 12 9/16 in
  • Height: 9 1/8 in
  • Usable @ 208V: No
  • Usable @ 200V: No
  • Motor Frame Material: Steel
  • No. of Speeds: 1
  • Motor Shaft Design: Threaded
  • Bolt Circle Dia.: 7 1/16 in
  • Conduit Box Position: F3
  • Application: Pool/Spa Motor
  • Country of Origin (subject to change): China

Description

Pool Pump Motor, Motor Enclosure Design Open Dripproof, Motor Thermal Protection Auto, Phase Single, Standards CSA (LR4642), UL (E14663)

Restrictions and Compliance

  • This item has been restricted from sale in the following states: CA
