Shop CHICAGO PNEUMATIC

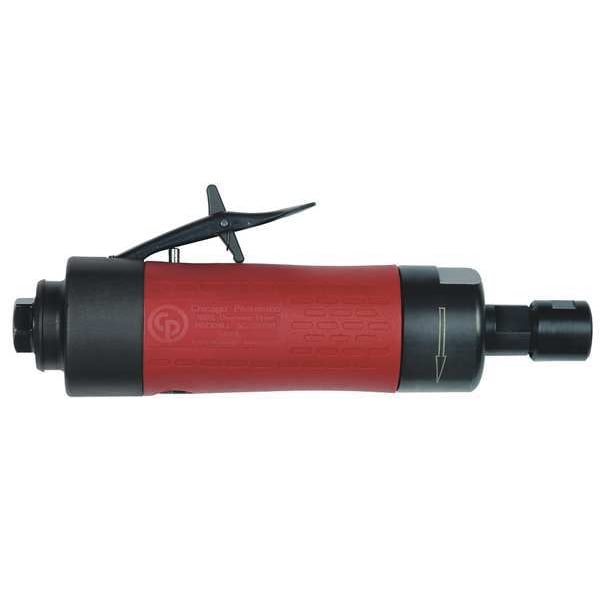

Straight Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Heavy Duty, 18,000 RPM, 0.7 hp

  • Mfr # CP3000-518R

  • Zoro # G6965682


product price:  $470.99
/ea
Free Shipping & Returns

Key Features

Overall Length
7 5/8 in
Air Inlet
1/4 in NPT Female
Horsepower
0.7 hp
Free Speed
18,000 RPM
Max. Speed
18,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CP3000-518R
Zoro #
G6965682
UPC #
015451688110
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
7 5/8 in
Min. Hose Size
3/8 in
Air Inlet Connection Size
1/4 in
Collet Size
1/4 in
Hose Size - Minimum
3/8 in

Details

Item
Die Grinder
Air Inlet
1/4 in NPT Female
Horsepower
0.7 hp
Free Speed
18,000 RPM
Max. Speed
18,000 RPM
Grinder Type
Straight
Includes
Wrenches
Duty
Heavy Duty
Characteristics
Compact, Ergonomic, Lightweight, Streamlined
Grinder Orientation
Straight
Average CFM @ 15 Second Run Time
7.0
CFM @ Full Load
28.0
Bearing Type
Ball
Throttle
Safety Lever
Collet
1/4 in
Variable Speed
Yes
Handle Material
Composite
Tool Weight
1.87 lb
Features
High Precision, Operator Comfort
Standards
EN ISO 11148-9:2012
Application
Deburring, Die Contouring, Light Chamfering
Safety Features
Streamlined Safety Lever
Air Consumption
28 cfm
Tool Style
Straight
Switch Type
Safety Lever
Series
CP3000 Series
Kit Contents
(1) Bare Tool
Minimum Speed
18,000 RPM
Air Inlet Type
NPT
Power Source
Air Powered
Grip Style
Barrel Grip
Switch Location
Top
Exhaust Location
Rear
Accessory Free Tool Change
No
Vibration Level
2.5 m/sq sec
Air Pressure
90 psi
Air Inlet Gender
Female
Tool Life
Ultra Durable
Speed - Minimum
18,000 RPM
Speed - Maximum
18,000 RPM
Frequency of Use
Frequent Maintenance to Heavy Production
Robot Mounting Components Included
Tool Only
Tool Series
CP3000

Description

Die Grinder, Duty Heavy Duty, Horsepower 0.7 hp, Collet Size 1/4 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 18,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Straight, Kit Contents (1) Bare Tool, Includes Wrenches, Grip Style Barrel Grip, Safety Features Streamlined Safety Lever, Switch Location Top, Power Source Air Powered
