Fan Mtr, 1.5HP, 1140, 220-230/460
Mfr # 31TR65
Zoro # G8571193
product price: $722.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Phase
Three
HP
1 1/2
RPM Range
1,101-1,200
No. of Speeds
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
31TR65
Zoro #
G8571193
UPC #
190735255711
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Shaft Length
6 in
Overall Length
16 3/4 in
Stud Size
#10-32
Bolt Circle Dia.
5 7/8 in
Length Less Shaft
10 3/4 in
Body Dia.
6 1/2 in
Lead Length
6 in
Description

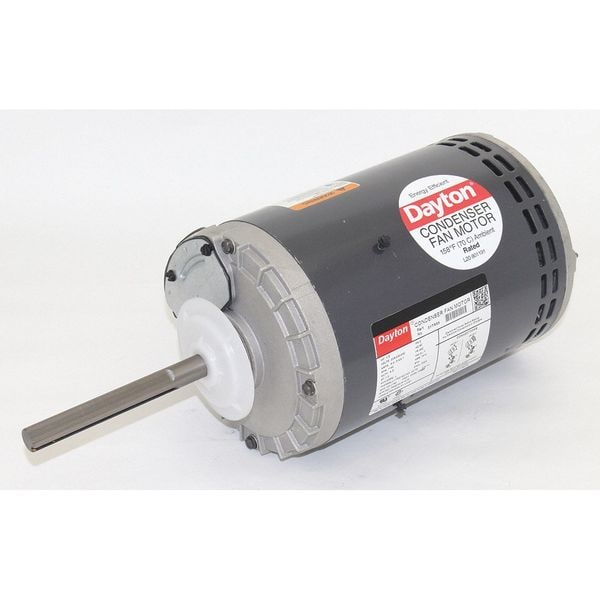

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 5.4-5.4/2.7 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band, Inverter Rated Inverter Rated, Motor Mounting Position Horizontal/Vertical Shaft Up
