  11. HVAC Motor, 1/50 HP, 1550 rpm, 115V, 3.3

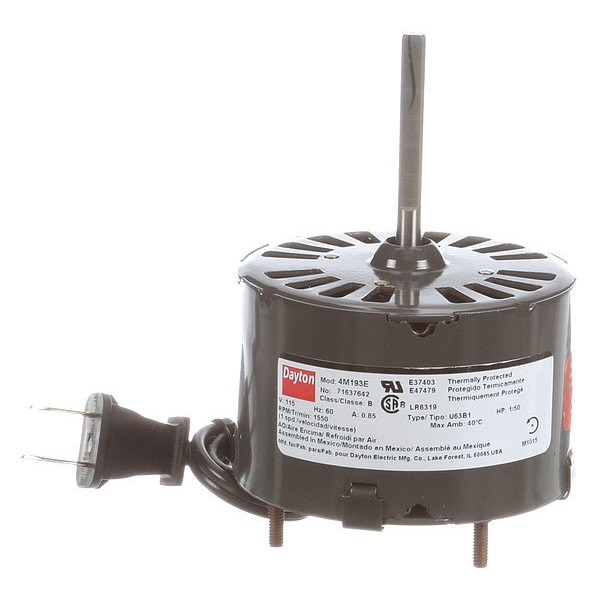

Dayton HVAC Motor, 1/50 HP, 1550 rpm, 115V, 3.3 71637642M - main

HVAC Motor, 1/50 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71637642M

  • Zoro # G3035855

product price: $59.49
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71637642M
Zoro #
G3035855
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
2 1/4 in
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Shaft Length
2 1/4 in
Cord Length
10 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/50
RPM Range
1,501-1,600
Plug Type
2 Prong Non-Polarized
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Footnotes
26 (Has 8-1/2" cordset)
Full Load Amps
0.85 A
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Motor Design
Shaded Pole
Includes
8-1/2 in Cordset
Motor Shaft Rotation
CCWSE
Mounting Pattern
2 x 2
Hz
60 Hz
Item
HVAC Motor
Motor Thermal Protection
Auto
Number of Shafts
1
Motor Sub Application
Direct Drive Fan/Blower
Duty
Continuous
Frame
3.3
Motor Service Factor
1
No. of Speeds
1
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Location
4/Opposite Shaft End
Motor Bearings
Sleeve
Phase
Single
Motor Shaft Design
Flat
Stud/Base Mtg. Pattern
2 in x 2 in
Motor Application
HVAC/R
Motor Mounting Type
Ring/Stud
Capacitor Required
No
Usable @ 208V
No
Mounting Stud Pattern
2 in x 2 in
Duty Cycle
Continuous
Motor Mounting Position
All Angle
Usable @ 200V
No
Type
OEM Replacement
Mounting
Stud

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/50 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.85 A Full Load Amps, 3.3 Frame, Output Watts 15 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
