Shop DAYTON

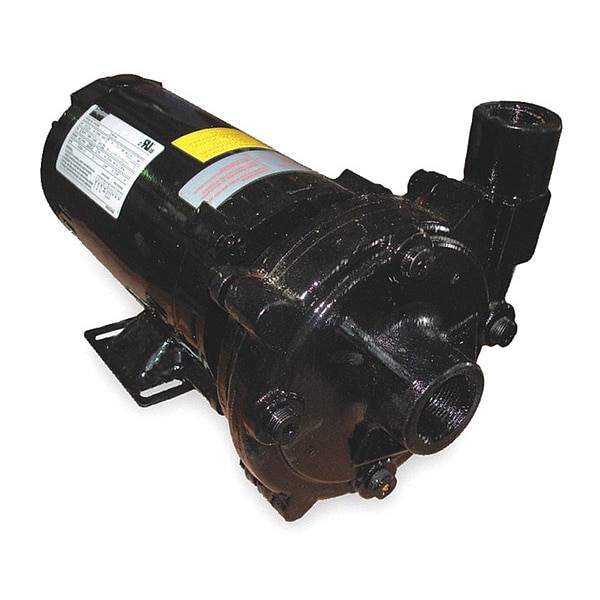

Straight Centrifugal High Head Pump, 1 HP

  • Mfr # 55JJ71

  • Zoro # G3721077

product price:  $410.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1 hp
Voltage - Pumps
230/460V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Inlet Size - Pumps
1-1/4 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
55JJ71
Zoro #
G3721077
UPC #
-
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in NPT
Outlet Size - Pumps
1 in NPT
Compatible Discharge Pipe Size
1 in
Compatible Intake Pipe Size
1 1/4 in
Impeller Diameter
130 mm
Solid Diameter (Maximum)
0.13 in
Discharge Diameter
1 in
Motor Frame Size
56J
Manufacturer Warranty Length
1 yr
Overall Length
15.5 in
Overall Width
7.8 in
Inlet Diameter
1 1/4 in
Overall Height
8.5 in
Shaft Outer Diameter
5/8 in

Details

HP - Pumps
1 hp
Voltage - Pumps
230/460V AC
Phase - Pumps
3
Housing Material - Pumps
Cast Iron
Max. Head
100 ft
Max. Pressure - Pumps
43 psi
Motor Enclosure - Pumps
Open Dripproof
Max. GPM @ Head
59 @ 10 ft
Motor Enclosure
Open Drip Proof
Item - Straight Centrifugal Pumps
Straight Centrifugal High Head Pump
Item
Centrifugal Pump
Phase
Three
Maximum Feet of Head
100 ft
Best Efficiency Flow
34 gpm
Maximum Flow Rate
59 gpm
Shut Off Pressure (Maximum)
43 psi
Flow Rate @ 50 ft of Head (Maximum)
43 gpm
Intake Type
NPT
Horsepower
1 hp
Flow Rate @ 30 ft of Head (Maximum)
51 gpm
Flow Rate @ 20 ft of Head (Maximum)
55 gpm
Flow Rate @ 10 ft of Head (Maximum)
59 gpm
Nameplate Voltage
230/460V AC
Best Efficiency Head
70 ft
Pump Housing Material
Cast Iron
Flow Rate @ 40 ft of Head (Maximum)
47 gpm
Flow Rate @ 90 ft of Head (Maximum)
16 gpm
Discharge Type
NPT
For Use With Potable Systems
No
Flow Rate @ 70 ft of Head (Maximum)
34 gpm
Mounting Orientation
Horizontal
Media Temperature - Minimum
40 Degrees F
Shaft Seal Material
Carbon/Ceramic/FKM
Full Load Current
3.2/1.6 A
Ambient Temperature - Maximum
40 Degrees C
Chemical Compatibility
Non-Flammable Liquids
Viscosity (Maximum)
100 SUS
Shaft Material
Stainless Steel
Duty Cycle
Continuous
Flow Rate (Minimum)
16 gpm
Volute Material
Cast Iron
Bearing Type
Ball
Service Factor
1.4
Inlet Orientation
Side
Flow Rate @ 10 ft of Head - Maximum
59 gpm
Thermal Overload Protection
Yes
Wetted Material
Carbon, Cast Iron, Ceramic, Stainless Steel, Viton
Flow Rate (Maximum)
59 gpm
Number of Stages
1
Standards
UL Recognized Motor
Drive Coupling Type
No Coupling
Hazardous Location Class
Not Rated
Discharge Orientation
Top
Impeller Material
Cast Iron
Motor Design
Three-Phase
Media Temperature - Maximum
200 Degrees F
Frequency
60 Hz
Pumping Application
Booster Services, Irrigation, Jockey Pump Services, Spraying Systems, Water Circulation
Priming
Manual
Shut Off Pressure - Maximum
43 psi
Includes
Manual
Feet of Head (Maximum)
100 ft
Specific Gravity (Maximum)
1
Discharge Position
Center
Inlet Position
Center
Case Pressure - Maximum
100 psi
Electrical Connection Type
Hardwired
Discharge Rotation Increments
0 Degrees
Motor Speed - Maximum
3,450 RPM
Shaft Seal Type
Mechanical
Feet of Head (Minimum)
10 ft

Description

Centrifugal Pump, Phase Three, Pump Housing Material Cast Iron, Horsepower 1 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 47 gpm, Flow Rate @ 60 ft of Head (Maximum) 39 gpm, Flow Rate @ 80 ft of Head (Maximum) 25 gpm, Maximum Feet of Head 100 ft, Compatible Intake Pipe Size 1 1/4 in, Intake Type NPT, Compatible Discharge Pipe Size 1 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 59 gpm, Flow Rate @ 10 ft of Head (Maximum) 59 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
