Shop DELAVAN FLUID POWER

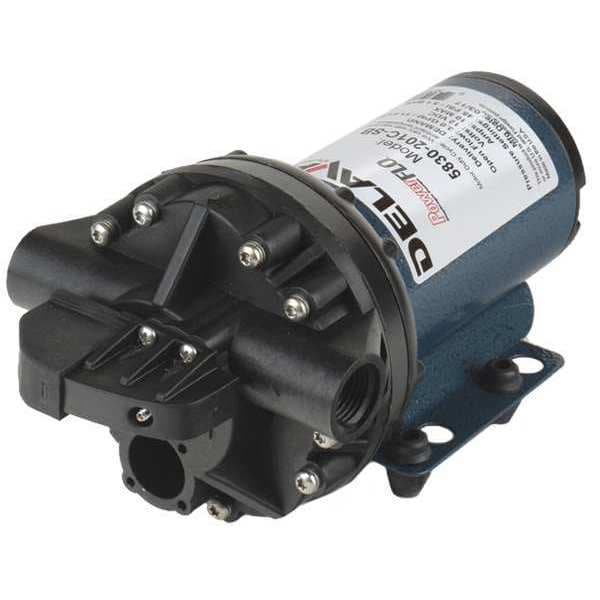

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 3.0 GPM 140 Degrees F

  • Mfr # 5830-201C-SB

  • Zoro # G1593203

product price:  $142.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
1/2 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5830-201C-SB
Zoro #
G1593203
UPC #
830344002589
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/2 in FNPT
Overall Length
9.1 in
Overall Height
4.6 in
Overall Width
5 in
Media Discharge Connection Size
1/2 in
Media Intake Connection Size
1/2 in
Discharge Connection Size
1/2 in
Intake Connection Size
1/2 in
Shaft Outer Diameter
8 mm
Discharge Diameter
1/2 in
Inlet Diameter
1/2 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
45 psi
Inlet/Outlet
1/2 FNPT
Diaphragm Design
Five Chamber
Motor Type
Totally enclosed Nonventilated
Type
Diaphragm
Pressure On
20 psi
Agency Compliance
CE/NSF
Pressure Off
100 psi
Pressure Switch
Yes
Fuse Amps
10 A
Prime in Feet
8
Standards
NSF Certified
Pump Operation Type
Electric
Motor Enclosure
Totally Enclosed Non-Ventilated
Current
10 A
Flow Rate @ 20 psi
2.5 gpm
Nameplate Voltage
12V DC
Series
5800
Flow Rate (Maximum)
3 gpm
Priming
Self-Priming
Flow Rate @ 40 psi
1.8 gpm
Flow Rate @ 0 psi
3.5 gpm
Diaphragm Chamber Design
5
Media Discharge Connection Type
FNPT
Media Intake Connection Type
FNPT
Check Valve Material
FKM
Housing Material
Polypropylene
Intake Connection Type
FNPT
Discharge Connection Type
FNPT
Feet of Head (Maximum)
103.8 ft
Electrical Connection Type
Two-Pin Molded Connector
Pump Technology
Diaphragm
Motor Speed - Maximum
2,200 RPM
Media Temperature - Maximum
140 Degrees F
Full Load Current
22.5
Phase
Single
Includes Regulator
No Regulator Included
Pressure Switch On Pressure
35 psi
Fluid Head Material
Polypropylene
Self-Priming Lift - Maximum
12 ft
Discharge Pressure - Maximum
45 psi
Pressure Switch Off Pressure
45 psi
Chemical Compatibility
Fertilizer, Herbicide
Power Source
Electric
Number of Diaphragms
1
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Pump Control Type
Demand
Includes Gearbox
No Gearbox Included
Gasket Material
FKM
Pump Drive Configuration
Electric Motor Unit
Includes Heat Sink
No Heat Sink Included

Description

Diaphragm Pump, Operating Pressure (Maximum) 45 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 3 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 2.5 gpm, Current 10 A
