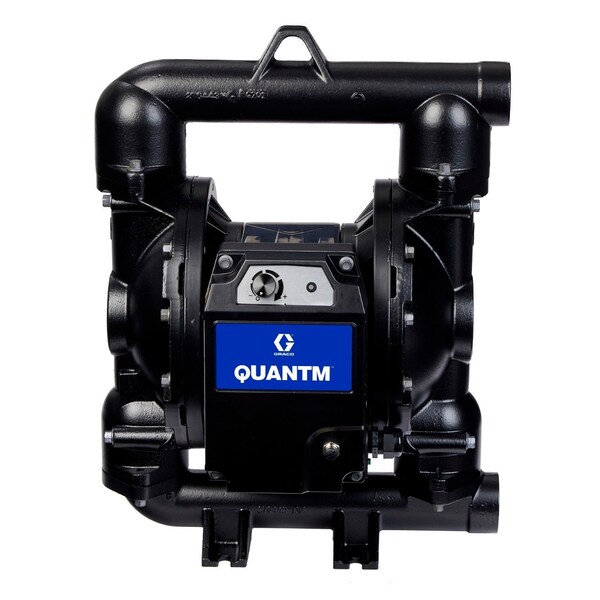

Electric Diaphragm Pump, 0.56 gal, 120 gpm

  • Mfr # TE120-1601
  • Zoro # G623353979
product price:
$
8,208.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Viscosity (Maximum)
30,000 cps
Media Discharge Port Configuration
Side
Valve Material
Santoprene
Priming
Self-Priming
Displacement Per Stroke
0.56 gal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE120-1601
Zoro #
G623353979
UPC #
769946881202
Country of Origin
United States

Dimensions

Solid Diameter (Maximum)
0.25 in
Media Discharge Connection Size
2 in
Manufacturers Warranty Length
1 yr
Media Intake Connection Size
2 in
Overall Height
26.34 in
Overall Length
18.13 in
Overall Width
14.89 in
Wire Rope Length
18.13 in
Length
18.13 in

Details

Viscosity (Maximum)
30,000 cps
Media Discharge Port Configuration
Side
Valve Material
Santoprene
Priming
Self-Priming
Displacement Per Stroke
0.56 gal
Check Seat Material
Santoprene
Manifold Connection
Single Port
Media Intake Location
Bottom
Standards
UL / CSA
Wetted Body Material
Cast Iron
Diaphragm Base Material
Santoprene
Operating Pressure (Maximum)
60 psi
Flow Rate (Maximum)
120 gpm
Media Discharge Connection Type
NPT
Media Temperature (Maximum)
180 Degrees F
Material Conductivity
Non-Conductive
Includes Clean In Place Technology
No Clean In Place Included
Pump Assembly Type
Bolt
Media Temperature (Minimum)
-40 Degrees F
Chemical Compatibility
Alcohol, Antifreeze, Calcium Carbonate, Sodium Hydroxide 10%, Sodium Hydroxide 20%
Hazardous Location Class
Not Rated
Manifold Connection Type
Double-Manifold
Mounting Hardware Material
Plated Steel
Item
Electric Diaphragm Pump
Center Section Material
Aluminum
Phase
Three
Media Intake Port Configuration
Side
Series
QUANTM I120 Industrial
Pump Operation Type
Electric
Nameplate Voltage
380-480V AC
Feet of Head (Maximum)
29 ft
Valve Type
Ball
Media Discharge Location
Top
Fluid Chamber Assembly Type
Bolted
Media Intake Connection Type
NPT

Description

Electric Diaphragm Pump,0.56 gal,120 gpm
