  11. HVAC Motor, 1/20 HP, 3000 rpm, 115/230V, 3.3

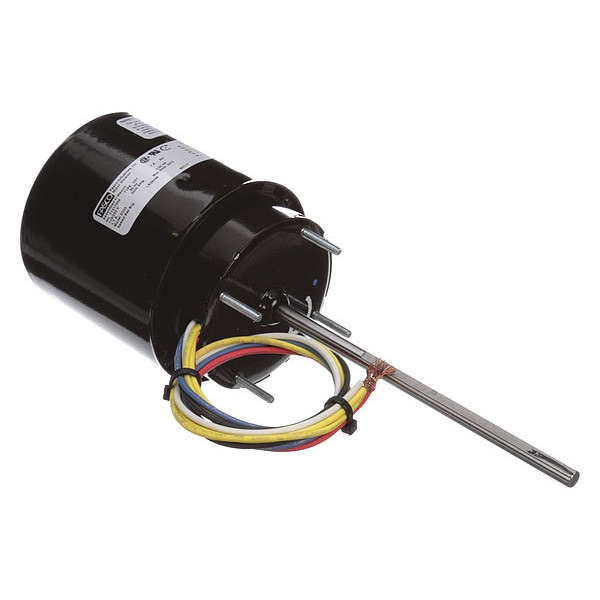

Fasco HVAC Motor, 1/20 HP, 3000 rpm, 115/230V, 3.3 D220 - main

HVAC Motor, 1/20 HP, 3000 rpm, 115/230V, 3.3

  • Mfr # D220

  • Zoro # G8522211

product price: $198.99
/ea
Free Shipping & Returns

Key Features

Voltage
115/230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed
Number of Speeds
1
HP
1/20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D220
Zoro #
G8522211
UPC #
663001025245
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Shaft Length
6 1/2 in
Length Less Shaft
4 7/8 in
Stud Size
#8-32
Bolt Circle Dia.
2 7/8 in
Overall Length
11 1/4 in
Lead Length
12 in

Details

Voltage
115/230V AC
Nameplate RPM
3,000
Motor Enclosure Design
Totally Enclosed
Number of Speeds
1
HP
1/20
RPM Range
1,801-3,000
Number of Shafts
1
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Flat
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Thermal Protection
Auto
Full Load Amps
1.1 A
Motor Design
Shaded Pole
Duty
Continuous
Motor Service Factor
1
Application
HVAC/R
Mounting Stud Location
4/Shaft End
Frame
3.3
Item
Direct Drive Blower Motor
Mounting Pattern
2-7/8 x 2-7/8
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Application
HVAC/R
Motor Mounting Type
Ring/Stud
No. of Speeds
1
Standards
CSA Certified, UL Recognized
Ins. Class
B
Motor Bearings
Ball
Phase
Single
Motor Shaft Rotation
CWSE
Capacitor Required
No
Mounting Holes
(4) #8-32
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Weight
5 lb
Usable @ 208V
No
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 200V
No
Mounting
Stud

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115/230V AC, 1.1 A Full Load Amps, 3.3 Frame, Output Watts 40 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Stud, Motor Frame Material Steel
