  11. HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3

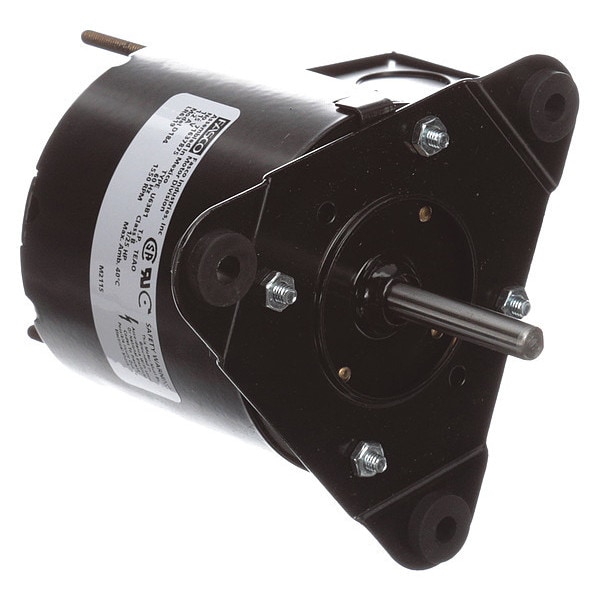

Fasco HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3 D184 - main

HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3

  • Mfr # D184

  • Zoro # G5519753

product price: $117.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/25
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D184
Zoro #
G5519753
UPC #
663001024835
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Shaft Dia.
5/16 in
Length Less Shaft
3 9/16 in
Shaft Length
1 3/4 in
Overall Length
4 15/16 in
Bolt Circle Dia.
2 7/8 in
Stud Size
#8-32

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Air-Over
Number of Speeds
1
HP
1/25
RPM Range
1,501-1,600
Motor Service Factor
1
Phase
Single
Ins. Class
B
Frame
3.3
Motor Application
HVAC/R
Standards
CSA Certified, UL Recognized
Motor Bearings
Sleeve
Motor Sub Application
Direct Drive Fan/Blower
Duty
Continuous
Hz
60 Hz
Full Load Amps
1.2 A
Item
Direct Drive Blower Motor
Motor Shaft Rotation
CWSE
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Mounting Stud Location
2/Opposite Shaft End
Motor Shaft Design
Flat
Number of Shafts
1
No. of Speeds
1
Motor Design
Shaded Pole
Motor Thermal Protection
Auto
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Application
HVAC/R
Motor Mounting Type
Ring/Stud
Mounting Pattern
2-7/8 x 2-7/8
Max. Ambient Temp.
40 Degrees C
Capacitor Required
No
Motor Frame Material
Steel
Weight
5 lb
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Motor Mounting Position
All Angle
Conduit Box Location
Exterior
Conduit Box Position
F2
Usable @ 200V
No
Usable @ 208V
No
Mounting Holes
(6) #8-32
Mounting
Lug

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.2 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
