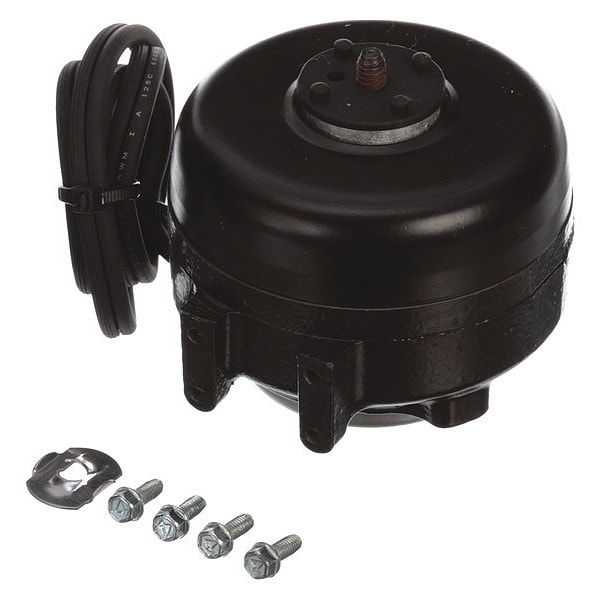

Unit Bearing Motor, 1/370 hp

  • Mfr # UB586

  • Zoro # G4326275

product price:  $41.09
/ea

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
2.3 W
HP
1/370
RPM Range
1,201-1,300
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UB586
Zoro #
G4326275
UPC #
786674070081
Country of Origin
China

Dimensions

Shaft Dia.
1/4 in
Body Dia.
3 7/16 in
Overall Length
3 1/4 in
Shaft Length
7/16 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
2 7/8 in
Bolt Circle Dia.
2 13/16 in
Mounting Stud Length
3/8 in
Lead Length
28 in
Shaft Diameter
1/4 in
Bolt Circle Diameter
2 13/16 in
Frame Size
Non-Standard
Body Diameter
3.4 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
2.3 W
HP
1/370
RPM Range
1,201-1,300
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Phase
Single
Voltage
230V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,300
Frame
Non-Standard
Motor Service Factor
1
Motor Enclosure Design
Totally Enclosed Air-Over
Frame Material
Cast Iron
Motor Design
Shaded Pole
Motor Bearings
Unit
Motor Mounting Position
All Angle
Motor Thermal Protection
Impedance
Standards
UL and CSA
Motor Shaft Design
Threaded
Item
Unit Bearing Motor
Motor Mounting Type
Rear/Double Foot
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Full Load Amps
0.8 A
Motor Frame Material
Cast Iron
Ins. Class
B
Duty Cycle
Continuous
No. of Speeds
1
Features
Totally Enclosed Air Over
Usable @ 208V
Not Usable at 208V
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
Stud Quantity
2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Weight
8 lb
Usable @ 200V
Not Usable at 200V
Product Type
Unit Bearing Motor
Nameplate Service Factor @ 60 Hz
1
Insulation Class
B
Bearing Type
Unit
Sub Application
Unit Bearing
Wattage
2.3 W
Full Load Current @ 60 Hz
0.8 A
Drive Type
Direct Drive
Number of Speeds
1
Manufacturers Warranty
1 yr
Mounting Position
All Angle
Shaft Design
Threaded
Motor Enclosure Type
Totally Enclosed Air-Over
Duty
Continuous
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/370 HP, Nameplate RPM 1,300, No. of Speeds 1, Voltage 230V AC, 0.8 A Full Load Amps, Non-Standard Frame, Output Watts 2.3 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
