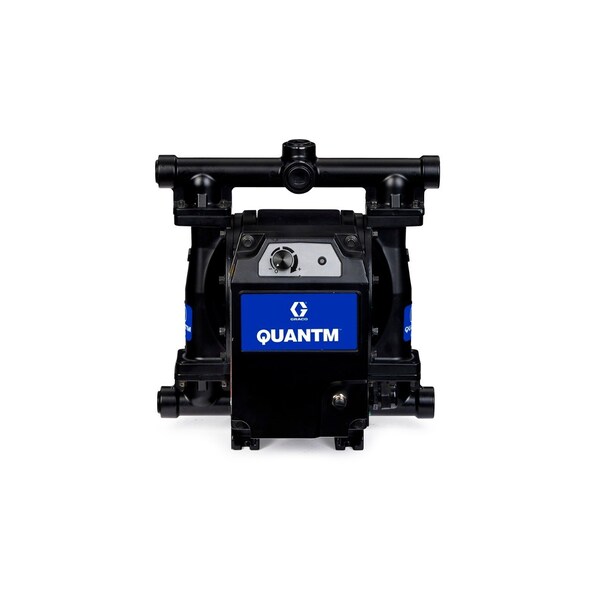

Electric Diaphragm Pump, 0.08 gal, 30 gpm

  • Mfr # TE30-0168

  • Zoro # G623353627

product price:
$
4,934.99
/ea
Free Shipping & Returns

Key Features

Media Temperature (Maximum)
150 Degrees F
Phase
Single
Mounting Hardware Material
Plated Steel
Nameplate Voltage
200-240V AC
Manifold Connection
Single Port
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE30-0168
Zoro #
G623353627
UPC #
769946276817
Country of Origin
United States

Dimensions

Media Intake Connection Size
1 in
Media Discharge Connection Size
1 in
Overall Width
13.25 in
Manufacturers Warranty Length
1 yr
Overall Length
16 in
Overall Height
17.8 in
Solid Diameter (Maximum)
0.25 in
Wire Rope Length
16 in
Length
16 in

Details

Media Temperature (Maximum)
150 Degrees F
Phase
Single
Mounting Hardware Material
Plated Steel
Nameplate Voltage
200-240V AC
Manifold Connection
Single Port
Pump Assembly Type
Bolt
Chemical Compatibility
Alcohol, Antifreeze, Detergents, Diesel, Kerosene, Oil, Water
Valve Material
Buna-N
Diaphragm Base Material
Buna-N
Includes Clean In Place Technology
No Clean In Place Included
Hazardous Location Class
Not Rated
Check Seat Material
Buna-N
Media Intake Connection Type
BSP
Media Intake Port Configuration
Side
Media Discharge Connection Type
BSP
Material Conductivity
Non-Conductive
Media Intake Location
Bottom
Wetted Body Material
Aluminum
Pump Operation Type
Electric
Displacement Per Stroke
0.08 gal
Valve Type
Ball
Standards
UL / CSA
Feet of Head (Maximum)
29 ft
Item
Electric Diaphragm Pump
Media Discharge Port Configuration
Side
Series
QUANTM I30 Industrial
Priming
Self-Priming
Flow Rate (Maximum)
30 gpm
Manifold Connection Type
NPT
Operating Pressure (Maximum)
100 psi
Center Section Material
Aluminum
Media Discharge Location
Top
Fluid Chamber Assembly Type
Bolted
Viscosity (Maximum)
20,000 cps

Description

Electric Diaphragm Pump,0.08 gal,30 gpm
