Shop GRACO

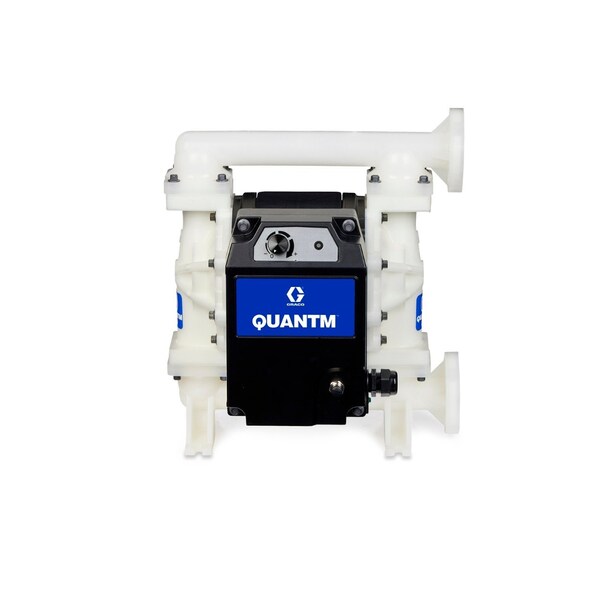

Electric Diaphragm Pump, 0.08 gal, 30 gpm

  • Mfr # TE30-0257
  • Zoro # G023358017
product price:
$
4,796.99
/ea
Free Shipping & Returns

Key Features

Valve Material
PTFE
Manifold Connection Type
Flange
Center Section Material
Aluminum
Media Temperature (Minimum)
32 Degrees F
Includes Clean In Place Technology
No Clean In Place Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE30-0257
Zoro #
G023358017
UPC #
769946710137
Country of Origin
United States

Dimensions

Overall Height
17.8 in
Media Intake Connection Size
1 in
Manufacturers Warranty Length
1 yr
Solid Diameter (Maximum)
0.125 in
Overall Width
13.25 in
Media Discharge Connection Size
1 in
Overall Length
16 in
Wire Rope Length
16 in
Length
16 in

Details

Valve Material
PTFE
Item
Electric Diaphragm Pump
Manifold Connection Type
Flange
Center Section Material
Aluminum
Media Temperature (Minimum)
32 Degrees F
Includes Clean In Place Technology
No Clean In Place Included
Phase
Single
Feet of Head (Maximum)
29 ft
Check Seat Material
Polypropylene
Diaphragm Reinforcement
Not Reinforced
Series
QUANTM I30 Industrial
Material Conductivity
Non-Conductive
Diaphragm Base Material
PTFE
Fluid Chamber Assembly Type
Bolted
Nameplate Voltage
200-240V AC
Pump Operation Type
Electric
Flow Rate (Maximum)
30 gpm
Viscosity (Maximum)
20,000 cps
Pump Assembly Type
Bolt
Standards
CE
Media Intake Connection Type
Flange
Displacement Per Stroke
0.08 gal
Media Discharge Location
Top
Hazardous Location Class
Not Rated
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Calcium Carbonate, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 50%, Sulfuric Acid 60%, Water
Media Intake Location
Bottom
Wetted Body Material
Polypropylene
Mounting Hardware Material
Plated Steel
Valve Type
Ball
Operating Pressure (Maximum)
100 psi
Media Discharge Port Configuration
Side
Manifold Connection
Single Port
Media Intake Port Configuration
Side
Priming
Self-Priming
Diaphragm Backing Material
Santoprene
Media Temperature (Maximum)
150 Degrees F
Media Discharge Connection Type
Flange

Description

Electric Diaphragm Pump,0.08 gal,30 gpm
