Shop GRACO

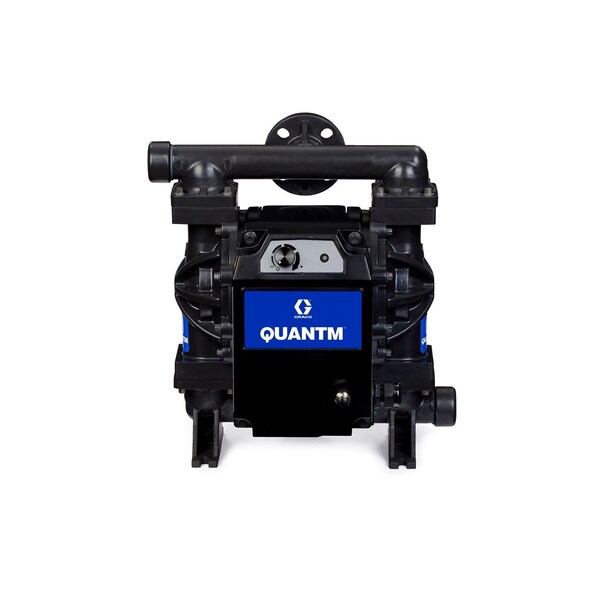

Electric Diaphragm Pump, 0.56 gal, 120 gpm

  • Mfr # TE120-0067

  • Zoro # G523359460

product price:  $11,783.99
/ea
Free Shipping & Returns

Key Features

Media Discharge Location
Top
Media Temperature (Minimum)
32 Degrees F
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Calcium Carbonate, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 50%, Sulfuric Acid 60%, Water
Includes Clean In Place Technology
No Clean In Place Included
Viscosity (Maximum)
30,000 cps
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE120-0067
Zoro #
G523359460
UPC #
769946322606
Country of Origin
United States

Dimensions

Overall Length
19.7 in
Media Discharge Connection Size
2 in
Media Intake Connection Size
2 in
Manufacturers Warranty Length
1 yr
Overall Width
14.89 in
Overall Height
25.7 in
Solid Diameter (Maximum)
0.25 in

Details

Media Discharge Location
Top
Media Temperature (Minimum)
32 Degrees F
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Calcium Carbonate, Phosphoric Acid 50%, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 50%, Sulfuric Acid 60%, Water
Includes Clean In Place Technology
No Clean In Place Included
Viscosity (Maximum)
30,000 cps
Hazardous Location Class
Not Rated
Manifold Connection
Single Port
Wetted Body Material
Polypropylene
Media Discharge Connection Type
Flange
Priming
Self-Priming
Media Intake Location
Bottom
Media Discharge Port Configuration
Side
Fluid Chamber Assembly Type
Bolted
Operating Pressure (Maximum)
60 psi
Media Temperature (Maximum)
150 Degrees F
Feet of Head (Maximum)
29 ft
Check Seat Material
Polypropylene
Media Intake Port Configuration
Side
Diaphragm Base Material
PTFE
Media Intake Connection Type
Flange
Flow Rate (Maximum)
120 gpm
Valve Material
PTFE
Diaphragm Backing Material
Santoprene
Center Section Material
Aluminum
Manifold Connection Type
Flange
Series
QUANTM I120 Industrial
Valve Type
Ball
Pump Assembly Type
Bolt
Phase
Single
Mounting Hardware Material
Plated Steel
Item
Electric Diaphragm Pump
Displacement Per Stroke
0.56 gal
Nameplate Voltage
200-240V AC
Standards
CE
Material Conductivity
Non-Conductive
Pump Operation Type
Electric
Diaphragm Reinforcement
Not Reinforced

Description

Electric Diaphragm Pump,0.56 gal,120 gpm
