  5. Pump, 5-1/2 In. L, 3-1/2 In. W, 4-3/4 In. H
Little Giant Pump Pump, 5-1/2 In. L, 3-1/2 In. W, 4-3/4 In. H 502216 - main
Shop LITTLE GIANT PUMP

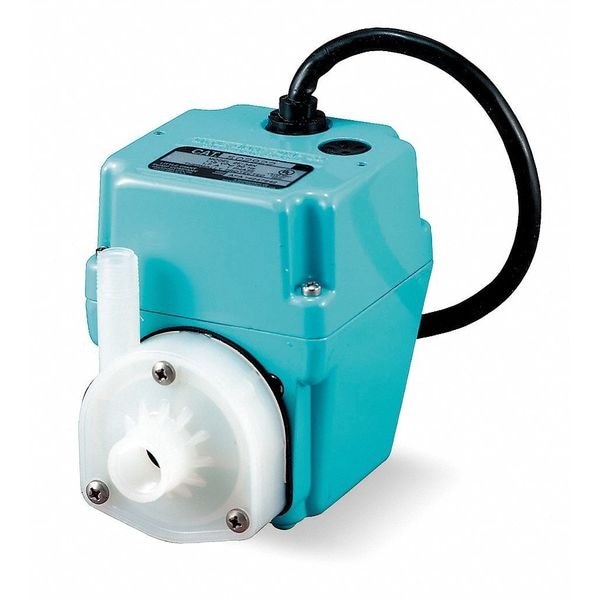

Pump, 5-1/2 In. L, 3-1/2 In. W, 4-3/4 In. H

  • Mfr # 502216

  • Zoro # G2504223

product price:  $163.99
/ea
Free Shipping & Returns

Key Features

HP
1/40 hp
Voltage
230V
Full Load Amps
0.7 A
Cord Length
12 ft
Impeller Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
502216
Zoro #
G2504223
UPC #
010121029033
Country of Origin
Multiple

Dimensions

Cord Length
12 ft
Length
5 1/2 in
Height
4 3/4 in
Width
3 1/2 in
Overall Width
3.5 in
Overall Length
5.6 in
Overall Height
4.6 in
Compatible Discharge Pipe Size
1/4 in
Compatible Intake Pipe Size
3/8 in
Manufacturer Warranty Length
1 yr

Details

Item
Centrifugal Pump
HP
1/40 hp
Voltage
230V
Full Load Amps
0.7 A
Impeller Material
Nylon
Duty
Continuous
Max. Head
11.8 ft
Seal Material
Nitrile
Overload Protection
yes
Outlet
1/4 in (M)NPT
Housing Material
Nylon
Inlet
3/8 in (F)NPT
GPH of Water @ 1 Ft. of Head
300
Features
Oil Filled
GPH of Water @ 10 Ft. of Head
70
Inlet Type
3/8 in (F)NPT
Hz
50/60
GPH of Water @ 5 Ft. of Head
205
Amps
0.9 A
Standards
cCSAus Listed
Nameplate Voltage
230V AC
Pump Housing Material
Cast Aluminum
Intake Type
NPT
Duty Cycle
Continuous
Maximum Media Temperature
120 Degrees F
Pumping Application
Air Conditioners, Machine Tool Coolants, Mild Acids, Recirculation, Submersible, Water Displays, Water Transfer
Flow Rate @ 1 ft of Head (Maximum)
300 gph
Discharge Type
NPT
Maximum Flow Rate
300 gph
Compatible with Media Type
Oil
Motor Sealing
Oil-Filled
Series
2E-38NY
Maximum Feet of Head
12 ft
Horsepower
1/40 hp
Flow Rate @ 10 ft of Head (Maximum)
70 gph
Seal Type
Mechanical
Frequency
60 Hz
Flow Rate @ 5 ft of Head (Maximum)
205 gph

Description

Centrifugal Pump, Pump Housing Material Cast Aluminum, Horsepower 1/40 hp, Nameplate Voltage 230V AC, Flow Rate @ 1 ft of Head (Maximum) 300 gph, Flow Rate @ 5 ft of Head (Maximum) 205 gph, Flow Rate @ 10 ft of Head (Maximum) 70 gph, Maximum Feet of Head 12 ft, Compatible Intake Pipe Size 3/8 in, Compatible Discharge Pipe Size 1/4 in, Intake Type NPT, Discharge Type NPT, Cord Length 12 ft, Motor Sealing Oil-Filled, Amps 0.9 A, Compatible with Media Type Oil, Duty Cycle Continuous
